During the Gulf War in 1990-1991, Germany didn't engage its Leopard 2 tanks in direct combat. Instead, they were deployed to Turkey, not Iraq. The German government sent a small number of Leopard 2 tanks primarily as a symbolic show of support for NATO allies involved in the conflict, especially Turkey, which had concerns regarding its security due to the proximity of the war in Iraq.

The Leopard 2 tanks in this context were stationed as a deterrent along the Turkish border with Iraq, but they weren't involved in active combat operations. Germany maintained a non-combatant role in the Gulf War, and the Leopard 2 tanks were not used in actual military engagements during that conflict.

While the Leopard 2 tanks were present in the region, their role was more of a defensive measure rather than engaging directly in the conflict in Iraq.

source: wikipedia

During the Balkan Wars in the 1990s, the Leopard 2 tanks were employed by several NATO member countries, including Germany and the Netherlands, as part of peacekeeping efforts in the Balkans. These conflicts, particularly in the former Yugoslavia, involved complex ethnic and political tensions, leading to the intervention of international forces to maintain peace and stability in the region.

The Leopard 2 tanks were part of these multinational peacekeeping missions, aimed at preventing further escalation of the conflicts, protecting civilians, and supporting the implementation of peace agreements. Their role primarily revolved around providing a deterrent against potential aggression and maintaining stability rather than engaging in offensive operations.

Their presence in the region, alongside other military assets, was instrumental in supporting peacekeeping efforts. Their deployment symbolized the commitment of NATO and allied nations to ensuring peace and stability in a region plagued by conflict. However, it's essential to note that their involvement was largely centered on deterring further violence and contributing to the overall peacekeeping strategy rather than direct combat engagements.

The participation of Leopard 2 tanks in the Balkan Wars served as an illustration of the international community's efforts to restore and maintain peace in a volatile region, utilizing military assets not for offensive actions but as a stabilizing force aimed at preventing further hostilities.

source: wikipedia

During the Kosovo War in the late 1990s, Leopard 2 tanks were part of the involvement of some NATO forces in the conflict. Germany, which deployed the Leopard 2 tanks, played a role within the context of NATO's operations during the conflict in Kosovo.

The specific use of Leopard 2 tanks during the Kosovo War involved their deployment as a part of the peacekeeping and stabilization efforts in the region. NATO forces, including those operating Leopard 2 tanks, were engaged in activities to enforce peace agreements, provide security, and prevent further hostilities and violence.

The Leopard 2 tanks in this conflict were used to support NATO's mission, primarily focused on maintaining peace, stability, and security in the region. Their role revolved around deterrence, maintaining a visible presence to discourage potential aggressors, and providing support to peacekeeping operations. However, their deployment during the Kosovo War didn’t involve direct combat engagements, as their primary function was to contribute to the peacekeeping efforts and act as a stabilizing force in the region.

The involvement of Leopard 2 tanks during the Kosovo War once again highlighted the role of advanced military assets in supporting peacekeeping missions, underlining NATO's commitment to preventing further conflicts and restoring stability in a region torn by violence and political unrest.

source: wikipedia

Leopard 2 tanks were employed in Afghanistan as part of the international coalition's efforts in the War on Terror, which began in 2001 following the September 11 attacks in the United States. Several NATO member countries, including Canada, Denmark, and the Netherlands, deployed their Leopard 2 tanks to the region during the conflict in Afghanistan.

The primary role of Leopard 2 tanks in Afghanistan was to provide support and protection for coalition forces involved in the broader mission of stabilizing the country, combating insurgent groups like the Taliban, and supporting the Afghan government. These tanks, with their advanced armor and firepower, played a crucial part in enhancing the security and mobility of coalition forces operating in a challenging and hostile environment.

Leopard 2 tanks were particularly valuable in the rugged terrain of Afghanistan, where their high mobility and potent firepower made them effective tools for both offense and defense. They were used in various roles, including convoy protection, patrolling, and, when necessary, engaging insurgent positions. The tanks also served as a visible deterrent, showcasing the commitment of NATO forces to maintaining security in the region.

The deployment of Leopard 2 tanks in Afghanistan was not without challenges. The difficult terrain, including mountainous regions and rough terrain, required skilled crews to operate these tanks effectively. Additionally, the tanks had to contend with the threat of improvised explosive devices (IEDs) and ambushes by insurgent forces.

While Leopard 2 tanks were valuable assets in enhancing the security and capabilities of coalition forces, it's important to note that their use was mainly within the context of counterinsurgency operations, peacekeeping, and stabilization efforts. They played a key role in supporting the broader objectives of the international community in Afghanistan, with the primary focus being on maintaining security and stability in the country rather than waging large-scale armored warfare.

The involvement of Leopard 2 tanks in Afghanistan highlighted their adaptability and versatility in different operational environments and their ability to contribute to the mission's success. It also underscored the broader challenges faced by coalition forces in dealing with asymmetric warfare and insurgent tactics.

source: wikipedia

During the Iraq War that began in 2003, the involvement of Leopard 2 tanks was multifaceted. While Germany, the primary operator of the Leopard 2, didn't engage these tanks in direct combat in Iraq, other nations within the coalition employed their Leopard 2 tanks in various capacities during the conflict.

Countries like the Netherlands and Denmark, which had acquired the Leopard 2, deployed these tanks in support of coalition forces in Iraq. Their primary roles included providing security, supporting ground operations, and enhancing the capabilities of coalition troops in a challenging and dynamic operational environment.

Leopard 2 tanks were instrumental in their ability to navigate the diverse landscapes of Iraq, ranging from urban areas to open deserts. They were utilized for tasks such as convoy protection, securing key locations, and serving as a deterrent against potential threats.

While the Leopard 2 tanks in Iraq weren't engaged in widespread tank battles or large-scale conventional warfare, their presence significantly contributed to the overall capabilities and security of coalition forces. They operated in a role more aligned with providing armored support, deterring potential threats, and enhancing the defensive capabilities of coalition troops.

The participation of Leopard 2 tanks in the Iraq War underscored their adaptability and effectiveness in diverse operational environments, emphasizing their value in supporting coalition forces and their mission in a complex and challenging theater of conflict.

source: wikipedia

The Syrian Civil War, which began in 2011, saw the involvement of the Leopard 2 tanks primarily through Turkey's deployment along its border with Syria. Turkey, a NATO member and a user of Leopard 2 tanks, positioned these armored vehicles as part of its defensive strategy along the Syrian border.

The deployment of Leopard 2 tanks by Turkey in this context aimed to enhance border security, deter potential threats, and protect against possible spillover of conflict from the Syrian Civil War. These tanks played a significant role in bolstering Turkey's defensive capabilities, particularly in regions where tensions were high due to the proximity of the conflict in Syria.

While the specifics of the Leopard 2's involvement in the Syrian Civil War itself might be limited, their deployment along the Turkish-Syrian border served as a visible deterrent against potential hostilities and contributed to Turkey's defensive posture in the region.

The presence of Leopard 2 tanks in this conflict was more focused on border security and deterrence rather than direct involvement in the internal conflict within Syria. It showcased the role of advanced military assets in supporting defensive strategies and deterring potential threats, emphasizing the significance of armored capabilities in maintaining border security and stability in the face of regional conflicts.

source: wikipedia

The involvement of Leopard 2 tanks in internal conflicts across various regions has been relatively discreet and not as extensively documented compared to their participation in larger, more widely recognized conflicts. However, there have been instances where nations utilizing Leopard 2 tanks have employed them in internal conflicts or operations aimed at addressing domestic unrest or insurgencies.

These internal conflicts often involve complex political, social, or ethnic dynamics, and the utilization of Leopard 2 tanks in such scenarios is generally focused on supporting government forces to restore order, counter insurgencies, or maintain stability within the country.

The specifics of Leopard 2 involvement in internal conflicts might vary significantly based on the context of the situation and the country employing these tanks. They are often used in roles such as urban pacification, securing key infrastructure, or supporting government forces in restoring law and order.

However, due to the sensitive nature of internal conflicts and the often limited public information available, the detailed involvement of Leopard 2 tanks in these scenarios might not be extensively documented or publicly disclosed.

In such instances, the use of Leopard 2 tanks might be part of the broader military efforts by governments to address internal unrest or insurgencies, with a primary focus on restoring stability and protecting key assets or territories.

source: wikipedia

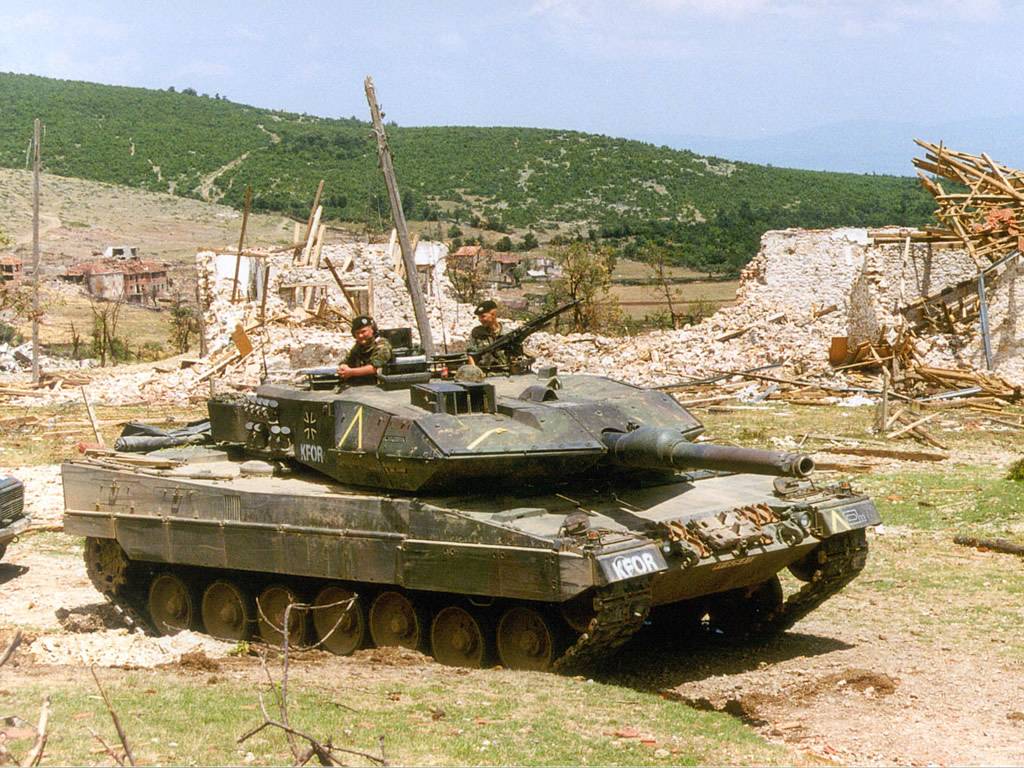

Starting on 12 June 1999, 28 Leopard 2A5 tanks were deployed to Kosovo by the German Army as part of the Kosovo Force (KFOR). The vehicles of Panzerbataillon 33 and 214 were sent from Macedonia to Prizren. They were used for patrols, protecting checkpoints and bases as well as part of the show of force. On 13 June 1999, two members of the Serbian paramilitary started firing from inside a Fiat 125p car at one of the checkpoints in Prizren and both were killed by return fire. A Leopard 2A5 was located at the checkpoint, but it could not participate in the fighting as it was only partially crewed.

On 26 June 1999, a Leopard 2A5 fired four warning shots above the town of Orahovac. From late 2000 to early 2001, the tanks were replaced by the Leopard 2A4 model. Leopard 2A4s were deployed to Macedonia in 2001 as part of the NATO intervention. The tanks served to protect Bundeswehr logistic sites in Macedonia. Until their return in 2004, the Leopard 2 tanks were stationed at the Austrian-Swiss camp "Casablanca".

source: wikipedia

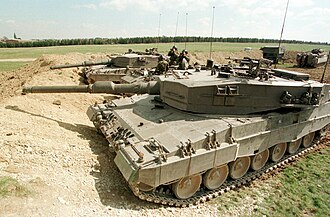

The Dutch contingent in Bosnia-Herzegovina operated Leopard 2 tanks. Dutch Leopard 2A4s and Leopard 2A5s were stationed at the NLD bases at Bugojno, Novi Travnik, Sisava, Knezevo, Maslovare and Suica.

source: wikipedia

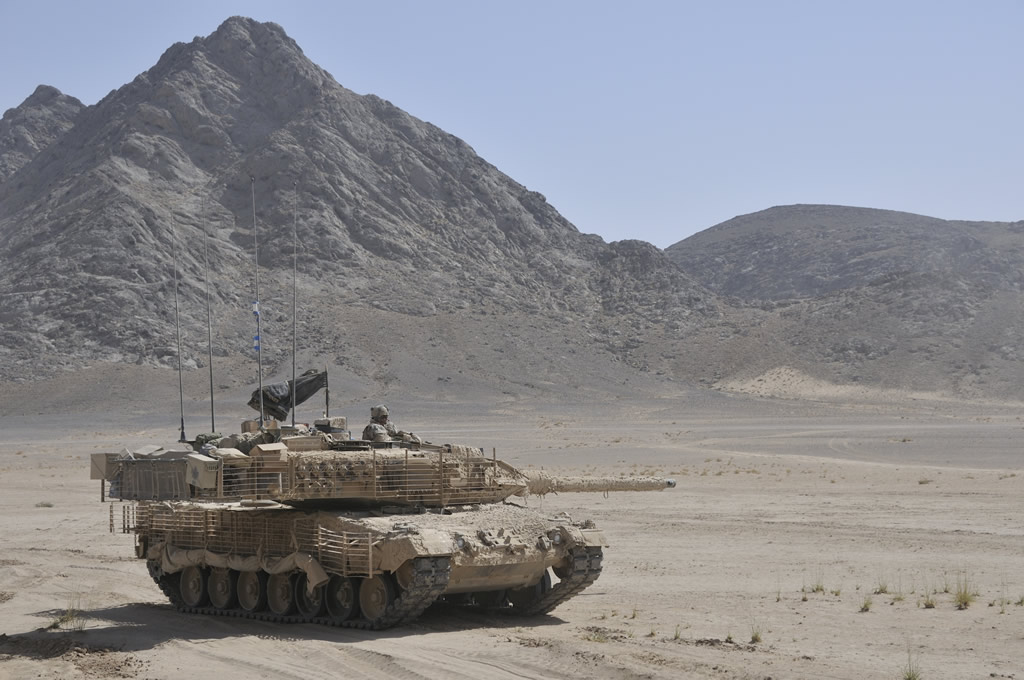

In October 2003, Canada was planning to replace its Leopard C2s with wheeled Stryker Mobile Gun Systems. However, operational experience in Afghanistan and in particular during Operation Medusa, convinced the Canadian military of the usefulness of maintaining a tank fleet.Leopard C2s were deployed to Kandahar in December 2006, but they were by then almost 30 years old, and were nearing the end of their operational life. The Canadian government decided to borrow 20 Leopard 2A6s and three armoured recovery vehicles from Germany for rapid deployment to Afghanistan. In late August 2007, the first Leopard 2s were airlifted into Afghanistan to equip Lord Strathcona's Horse (Royal Canadians).

In an assault on 2 November 2007, a Leopard 2A6M hit an improvised explosive device (IED) and survived without casualties: "My crew stumbled upon an IED (improvised explosive device) and made history as the first (crew) to test the (Leopard 2A6) M-packet. It worked as it should." wrote a Canadian officer in an email to German defence officials. Canadian Chief of the Defence Staff General Rick Hillier denied reports that a Leopard 2 tank that was struck by an IED was a write-off, insisting that the tank has been repaired and is once again in use. "The Taliban have been engaged with some of the new Leopard 2 tanks in several ambushes" and that as a result the Taliban "learned some very harsh lessons" and lost the battle in question "very quickly and very violently."

In October 2007, Denmark deployed Leopard 2A5 DKs in support of operations in southern Afghanistan. The Danish tank unit, drawn from the first battalion of the Jydske Dragonregiment (Jutland Dragoons Regiment), was equipped with three tanks and one M113 armored personnel carrier, with an armoured recovery vehicle and another tank kept in reserve. The Danish version of the Leopard 2A5 is fitted with Swedish-made Barracuda camouflage mats that limit the absorption of solar heat, thus reducing infrared signature and interior temperature. It also has a conventional driver's seat bolted on the floor of the tank, whereas in the Canadian 2A6M (as part of the mine-protection package) the driver's seat has been replaced by a "dynamic safety seat", which is a parachute-harness like arrangement that the driver wears around his hip. This way, the driver does not have any contact with the hull except on the pedals and is out of the shockwave area of exploding land mines or IEDs.

In January 2008, Danish tanks halted a flanking manoeuvre by Taliban forces near the Helmand River by providing gunfire in support of Danish and British infantry from elevated positions. On 26 February 2008, a Danish Leopard 2 was hit by an explosive device, damaging one track. No one was injured and the tank returned to camp on its own for repairs. The first fatality suffered by a crew operating a Leopard 2 happened on 25 July 2008. A Danish Leopard 2A5 hit an IED in Helmand Province. The vehicle was able to continue 200 metres (656 ft) before it halted. Three members of the four-man crew were able to escape even though wounded, but the driver was stuck inside. Onsite treatment by Danish medics could not save him. The vehicle was towed to Forward Operating Base (FOB) Attal and then later to FOB Armadillo for investigation and possible redeployment. During the same contact with Taliban forces, a second tank was caught in an explosion but none of the crew were wounded.

Beginning on 7 December 2008, Leopard 2 tanks took part in Operation Red Dagger, firing 31 rounds in support of Coalition troops as they recaptured Nad Ali District. A press release from the British Ministry of Defence praised the tank's fire accuracy and mobility, claiming the Leopard 2 was a decisive factor in the coalition's success.

source: wikipedia

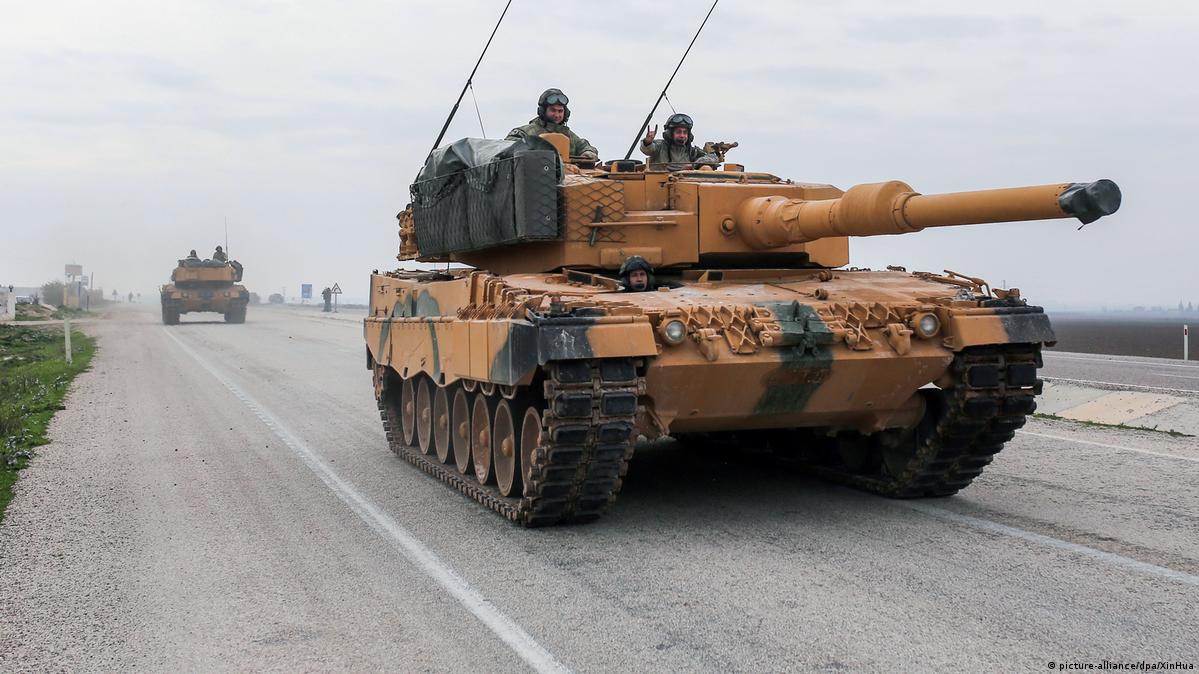

Turkey operates 354 Leopard 2A4 tanks. Initially using other tank types including upgraded M60s, in December 2016 Turkey deployed a number of Leopard 2A4s to the Syrian Civil War against Islamic State of Iraq and the Levant (ISIS) as part of Operation Euphrates Shield. Initially, three of the Turkish Leopard 2A4s operating in Syria were destroyed or damaged by ISIS using anti-tank missile systems (possibly Fagot or Konkurs anti-tank guided missiles obtained from Syrian or Iraqi Army captured stocks). In mid-December 2016, two 2A4 tanks were captured by ISIS near al-Bab city in Syria during Euphrates Shield operations. Amaq News Agency posted video of vehicles claimed to be captured Leopard 2A4s.

By late December 2016, ISIS had captured or incapacitated 10 Leopard 2A4s. These were damaged by anti-tank weapons, IEDs, or other unknown causes. Additional ISIS propaganda images and video depicting several completely destroyed Leopards, some with their turrets blown off, were published in January 2017. Tanks which suffered the worst damage may have been destroyed by airstrikes in order to prevent capture but sources generally state that the damage was caused solely with anti-tank missiles or car bombs driven by suicide bombers.

In January 2017, the German newspaper Die Welt reported that ISIL fighters used 9M133 Kornet anti-tank missiles to destroy six Leopard 2 tanks used by the Turkish military in Syria.

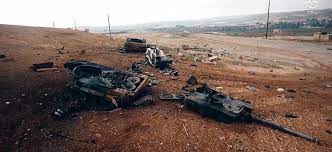

At least eight Leopard 2 MBT have been destroyed according to photographic reports.

Turkey also confirmed the use of Leopard 2A4 tanks during the Turkish military operation in Afrin to the German government. These tanks were designed during the Cold War to fight against Soviet tanks in Europe, not counterinsurgencies against guerrillas, where the primary risk is improvised explosive devices and anti-tank missiles. These tanks were retired from German usage when sold to Turkey.

There is a belief that the Turkish purchase of Leopard 2A4s from Germany was subject to the condition that they were not to be used against Kurdish separatists. Prior to 2016, the Leopard 2A4s were kept in northern Turkey. Once the German government discovered that the Leopard tanks were being used against Kurdish forces, planned upgrades to make them “less vulnerable to explosives” were halted. Ultimately Turkey was forced to upgrade the Leopard 2A4s with domestic components, including a possible replacement of the original turret with that of the Turkish Altay main battle tank.

source: wikipedia

In April 2023, during training of a Ukrainian crew a Leopard 2A4 was damaged with its turret being completely dislodged from the hull. The crew was reported as fine. In July 2023, a Leopard 2A4 was modified to carry Kontakt-1 ERA on the sides of the hull and the turret. It was also shown with rubber screens attached to the turret and gun mantel.

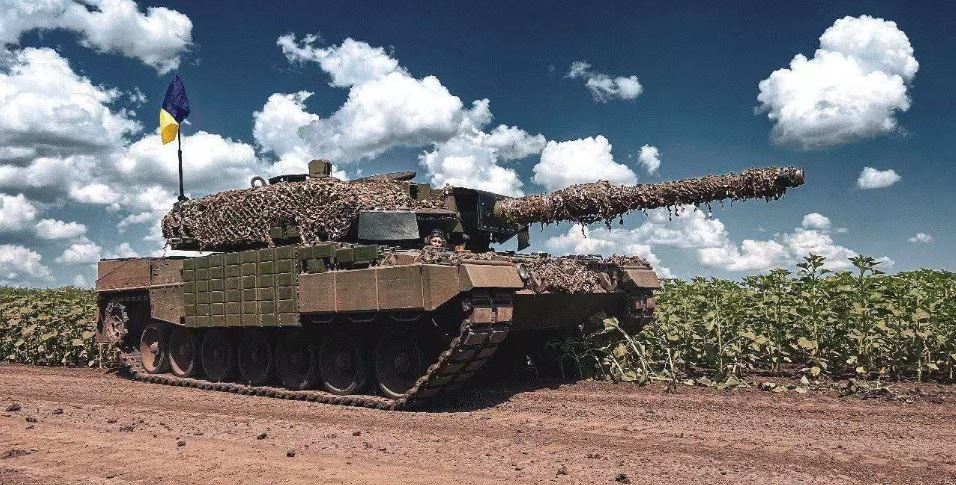

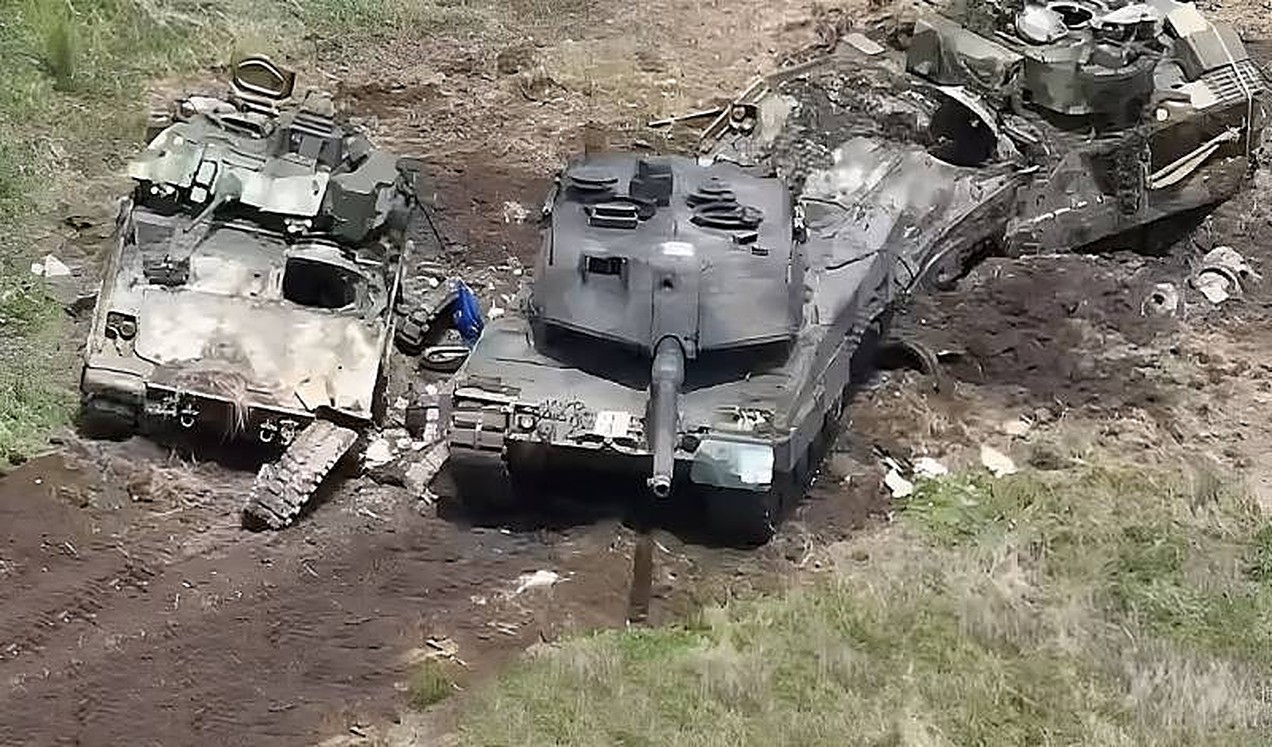

Beginning in June 2023, Ukraine deployed Leopard 2s during the Russo-Ukrainian War against Russia in preparation for their 2023 counteroffensive. During Ukrainian attacks in Zaporizhzhia Oblast on 8 June 2023, a Russian artillery strike on a Ukrainian vehicle column at Novopokrovka destroyed at least one Leopard 2A4 tank. Additionally, more Russian drone footage from the same day and days after showed 4 Leopard 2A6 tanks and 3 Leopard 2Rs damaged or destroyed south the road of Mala Tokmachka.

On 28 August 2023, Russia's Defense Minister Sergey Shoigu claimed that Russian forces had destroyed or damaged all 16 Leopard 2A4 tanks supplied to Ukraine by Poland and Portugal.

As of 6 November 2023, according to the Oryx blog, at least twelve Ukrainian Leopard 2s were destroyed according to photos and videos (3 Leopard 2A6, 2 Leopard 2A4, 5 Leopard 2A4V, 1 Leopard 2R, 1 Bergepanzer-3); While another 16 Ukrainian Leopard 2s of various models were confirmed damaged to various degrees, with seven of them being classified as abandoned by their crews: 4 Leopard 2A4, 7 Leopard 2A6 with 4 of them being abandoned, 3 Stridsvagn 122 that are also abandoned, 2 Leopard 2R. Totally, at least 18 Leopard-2 were total write-off and 9 more were damaged. The Oryx's list only includes destroyed or damaged equipment of which photo or videographic evidence is available, thus the amount of equipment lost could be higher than Oryx documented.

On 4 October 2023, according to Forbes, Ukrainian forces managed to recover at least one Strv 122 and have sent it to be repaired.

source: wikipedia

The Leopard 2 uses spaced multilayer armour throughout the design. The armour consists of a combination of steel plates of different hardness, elastic materials, and other non-metallic materials. Steel plates with high hardness and high ductility are used. The armour is a result of extensive research about the formation and penetration mechanism of shaped charge jets. The Leopard 2's armour might be based on the British Burlington armour, which had already been demonstrated to West Germany in 1970.

Later, in the mid-1970s, full details about Burlington were handed over to the West German government. The frontal arc of the Leopard 2's armour is designed to withstand large caliber kinetic energy penetrators and shaped charge projectiles. During the 1980s, it was estimated that the Leopard 2's front would resist 125 mm armour-piercing fin-stabilized discarding sabot (APFSDS) rounds fired from a distance of 1,500 m.

The Leopard 2A4's armour has a maximum physical thickness of 800 millimetres (31 in) based on unofficial measurements and estimates made by former conscripts and professional soldiers of the German army. On the Leopard 2A5 and subsequent models, the thickness is increased by the wedge-shaped armour module to 1,500 millimetres (59 in).

The side and the rear of the tank protect against heavy machine guns, medium caliber rounds, and older types of tank ammunition. The side of the hull is covered by armour skirts to increase protection against projectiles and rocket-propelled grenades (RPGs). The frontal third of the hull sides is covered by heavy ballistic skirts, while the rest of the hull sides is covered by steel-reinforced rubber skirts. For increased protection against mines, the sides of the hull floor are sloped by 45° and the floor is reinforced with corrugations.

source: wikipedia

The Leopard 2's design follows the concept of compartmentation. Possible sources of fire or explosions have been moved away from the crew. In the turret, the ammunition and the hydraulics are located in compartments separated from the crew. In case of a detonation, the blow-off panels on the compartment roofs will direct the explosion and fire away from the crew. The crew is also protected against nuclear, biological and chemical (NBC) threats, as the Leopard 2 is equipped with a Dräger NBC overpressurization system, which provides up to 4 hPA over-pressure inside the vehicle.

Two groups of four Wegmann 76 mm smoke mortars are mounted on either side of the turret and can be electrically fired either as single rounds or in salvos of four. They are mounted on most Leopard 2 models, with the exception of Dutch Leopard 2s, which are equipped instead with a Dutch-designed smoke mortar system with six barrels on each side. Swedish Stridsvagn 122 utilises French GALIX smoke dispensers, similar to the system found on the French Leclerc.

The Leopard 2 is equipped with a fire protection system. Four 9 kg halon fire extinguisher bottles are installed on the right behind the driver's station. The bottles are connected to pipes and hoses and are activated automatically by the fire detection system when temperatures rise above 82 °C (180 °F) inside the fighting compartment, or manually via a control panel in the driver's compartment. An extra 2.5 kg halon fire extinguisher is stored on the floor beneath the main gun.

source: wikipedia

Following Leopard 2's introduction into service in 1979, the armour has been gradually improved over the years. A modified version of spaced multilayer armour was introduced beginning with the 97th vehicle of the 6th production batch. The same batch also introduced an improved type of heavy ballistic skirts.

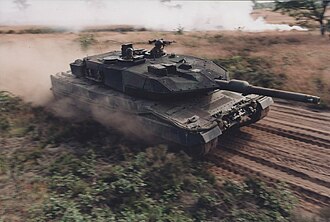

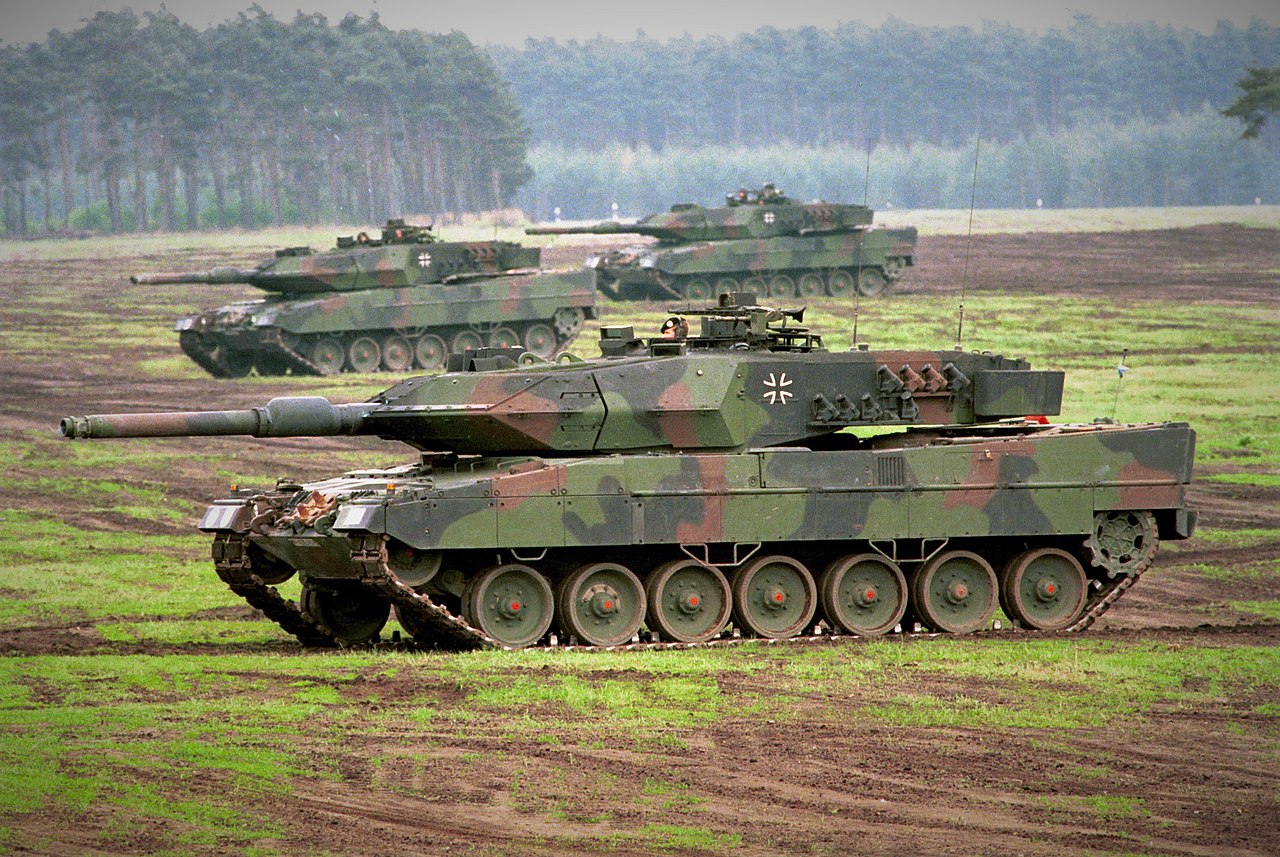

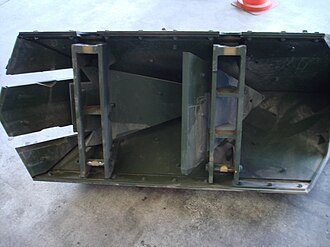

The Leopard 2A5 upgrade focused on increased armour protection. While upgrading a Leopard 2 tank to the Leopard 2A5 configuration, the roof covering the armour modules is cut open and new armour modules are inserted. New additional armour modules made of laminated armour cover the frontal arc of the turret. They have a distinctive arrowhead shape and improve protection against both kinetic penetrators and shaped charges. The side skirts also incorporate improved armour protection. A 25 mm-thick spall liner reduces the danger of crew injuries in case of armour penetration.

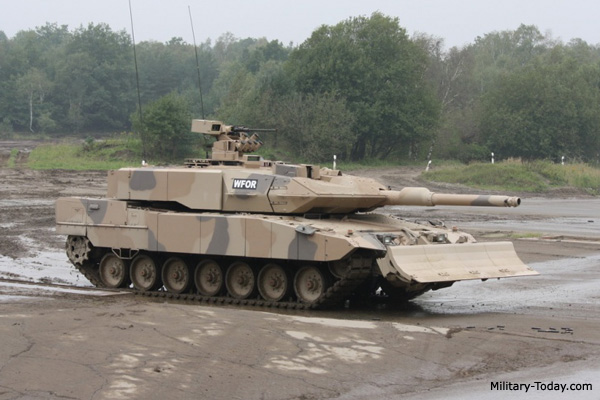

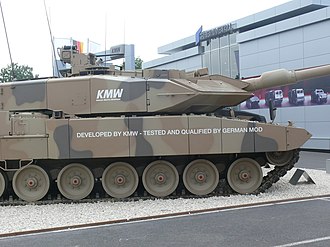

The Leopard 2A7 features the latest generation of passive armour and belly armour providing protection against mines and IEDs. The Leopard 2A7 is fitted with adapters for mounting additional armour modules or protection systems against RPGs.

For urban combat, the Leopard 2 can be fitted with different packages of modular armour. The Leopard 2A4M CAN, Leopard 2 PSO (Peace Support Operations) and the Leopard 2A7 can mount thick modules of composite armour along the flanks of the turret and hull, while slat armour can be adapted at the vehicle's rear. The armour modules provide protection against the RPG-7, which depending on the warhead can penetrate between 280 millimetres (11 in) and 600 millimetres (24 in) of steel armour. The Leopard 2A6M CAN increases protection against rocket-propelled grenades (RPGs) by including additional slat armour.

Additional armour packages have been developed by a number of different companies. IBD Deisenroth has developed upgrades with MEXAS and Advanced Modular Armor Protection (AMAP) composite armour, the latter is being used on Singaporean and Indonesian Leopard 2 tanks. RUAG has developed an armour upgrade utilizing their SidePRO-ATR composite armour. This upgrade was first presented on the IAV 2013.

The Leopard 2A4M and 2A6M add an additional mine protection plate for the belly, which increases protection against mines and IEDs.

On 22 February 2021, the German Defence Ministry agreed to acquire Trophy, an active protection system of Israeli design. 17 German Army tanks will be fitted with the system, with integration planned to be completed in 2023.

source: wikipedia

Estimated levels of protection for the Leopard 2 range from 590 to 690 mm RHAe on the turret, 600 mm RHAe on the glacis and lower front hull on the Leopard 2A4, to 920–940 mm RHAe on the turret, 620 mm RHAe on the glacis and lower front hull on the Leopard 2A6 against kinetic projectiles.

According to a description page hosted by the Federation of American Scientists, the armour of the Leopard 2A4 is believed to provide protection equivalent to 700 mm armour steel (RHA) against kinetic energy penetrators and 1000 mm RHA against shaped charge warheads.

source: wikipedia

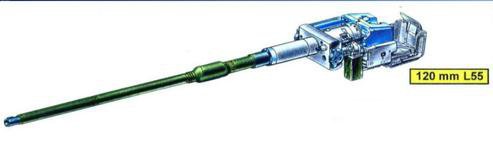

The primary armament for production versions of the Leopard 2 is the Rheinmetall 120 mm smoothbore gun—the same gun later adapted for use on the M1 Abrams—in either the L/44 variant (found on all production Leopard 2s until the A5), or the L/55 variant (as found on the Leopard 2A6 and subsequent models). Ammunition for the gun comprises 27 rounds stored in a special magazine in the forward section of the hull, to the left of the driver's station, with an additional 15 rounds stored in the left side of the turret bustle, which is separated from the fighting compartment by an electrically operated door.

If the ammunition storage area is hit, a blow-off panel in the turret roof would direct an explosion upwards away from the crew compartment. The gun is fully stabilised, and can fire a variety of types of rounds, such as the German DM43 APFSDS-T anti-tank round, which is said to be able to penetrate 560 millimeters (22 in) of steel armour at a range of 2,000 metres (2,200 yd), and the German DM12 high-explosive anti-tank (HEAT).

For the L/55 gun, a newer APFSDS-T round was introduced to take advantage of the longer barrel, the DM-53, which is said to be able to penetrate 750 mm of RHAe armour at a range of 2,000 meters. The bore evacuator and the gun's thermal sleeve of the A4 and A5, designed to regulate the temperature of the barrel, are fabricated from glass-reinforced plastic. The barrel has a chrome lining to increase barrel life. The main gun is capable of power elevating from +20° to −9°.

Rheinmetall has developed an upgrade for Leopard 2 tanks to give them the ability to fire the Israeli LAHAT anti-tank guided missile through the main gun. The missile can engage targets out to a range of 6,000 metres (20,000 ft).

source: wikipedia

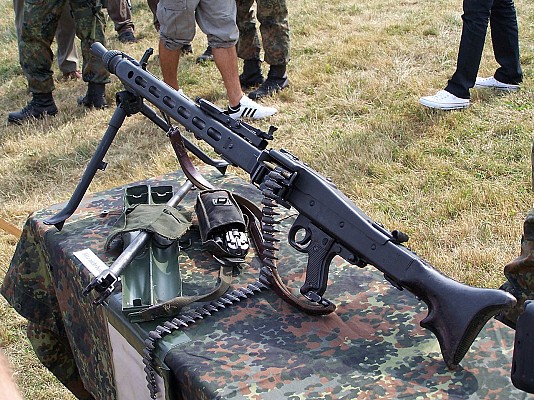

The Leopard 2 is equipped with two machine guns, one mounted co-axially, the other on an anti-aircraft mount. German models use the MG 3 7.62 mm machine gun; Dutch and Singaporean models use FN MAG 7.62 mm machine guns; Swiss models use Swiss MG 87 7.5 mm machine guns. 4,750 rounds of machine gun ammunition are carried on board the Leopard 2. More recent variants such as the Leopard 2A7+ are capable of mounting a Remotely-Controlled Weapons Station fitted with a Browning M2HB Heavy Machine Gun, near the commander's hatch.

source: wikipedia

The standard fire control system found on the Leopard 2 is the German EMES 15 fire control system with a dual magnification stabilised primary sight. The primary sight has an integrated neodymium yttrium aluminium garnet Nd:YAG laser rangefinder and a 120 element Mercury cadmium telluride, HgCdTe (also known as CMT) Zeiss thermographic camera, both of which are linked to the tank's fire control computer. A backup 8x auxiliary telescope FERO-Z18 is mounted coaxially for the gunner.

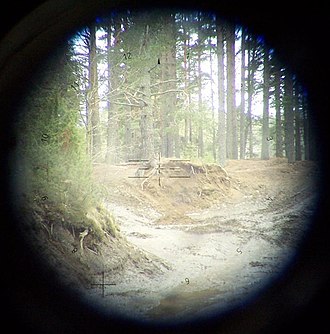

The commander has an independent periscope, the Rheinmetall/Zeiss PERI-R 17 A2. This is a stabilised panoramic periscope sight designed for day/night observation and target identification. It provides an all round view with a traverse of 360°. The thermal image from the commander's periscope is displayed on a monitor inside the tank. Initial production tanks were not equipped with a thermal sight, due to the sight not being ready, and instead temporarily substituted the PZB 200 low light TV system (LLLTV).

The fire control suite is capable of providing up to three range values in four seconds. The range data is transmitted to the fire control computer and is used to calculate the firing solution. Because the laser rangefinder is integrated into the gunner's primary sight, the gunner is able to read the digital range measurement directly. The maximum range of the laser rangefinder is up to 10,000 m with a measuring accuracy within 10 m at this range. The combined system allows the Leopard 2 to engage moving targets at ranges of up to 5,000 meters whilst itself being on the move over rough terrain.

source: wikipedia

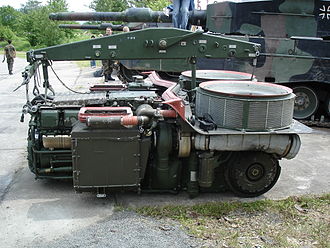

The Leopard 2 is propelled by the MTU MB 873 Ka-501 engine. It provides 1,500 PS (1.1 MW) at 2600 RPM and 4,700 N⋅m (3,500 lb⋅ft) of torque at 1600–1700 RPM. The MTU MB 873 Ka-501 is a four-stroke, 47.7 litre, 90° V-block 12-cylinder, twin-turbocharged and intercooled, liquid-cooled diesel engine (with multi-fuel capability). It has an estimated fuel consumption rate of around 300 litres per 100 km on roads and 500 litres per 100 km across the country, and is coupled to the Renk HSWL 354 gear and brake system.

The Renk HSWL 354 transmission has four forward and two reverse gears, with a torque converter and is completely automatic, with the driver selecting the range. The Leopard 2 has four fuel tanks, which have a total capacity of approximately 1,160 litres, giving a maximum road range of about 500 km. The propulsion pack is capable of driving the tank to a top road speed of 68 km/h (limited to 50 km/h during peacetime by law), and a top reverse speed of 31 km/h. The power pack can be changed in the field in 35 minutes. The engine and transmission are separated from the crew compartment through a fireproof bulkhead. An enhanced version of the EuroPowerPack, with a 1,650 PS (1.2 MW) MTU MT883 engine has been trialled by the Leopard 2.

The Leopard 2 has a torsion bar suspension and has advanced friction dampers. The running gear consists of seven dual rubber-tired road wheels and four return rollers per side, with the idler wheel at the front and drive sprocket at the rear. The tracks are Diehl 570F tracks, with rubber-bushed end connectors, which have removable rubber pads and use 82 links on each track. For use in icy ground, up to 18 rubber pads can be replaced by the same number of grousers, which are stored in the vehicle's bow when not in use. The upper part of the tracks are covered with side skirts.

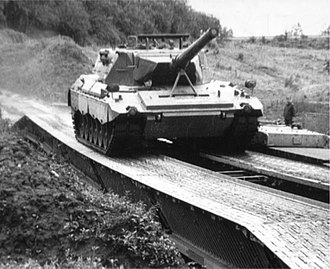

The Leopard 2 can drive through water 4 meters (13 ft) deep using a snorkel or 1.2 meters (3 ft 11 in) without any preparation. It can climb vertical obstacles over one metre high.

The German Army has prioritised mobility in the Leopard 2, which has made it one of the fastest MBTs in the world.

Ukrainian forces have said that the Leopard 2 tank is only slightly louder than a diesel van. This lack of noise, they claim, gives them a tactical advantage during an ambush. One Ukrainian commander estimated that Russian forces only heard the Leopard 2 from 200 metres, during an ambush. Compared to 2-3 kilometres for their older Soviet era tanks.

source: wikipedia

source: wikipedia

Leopard 2

Leopard 2A1

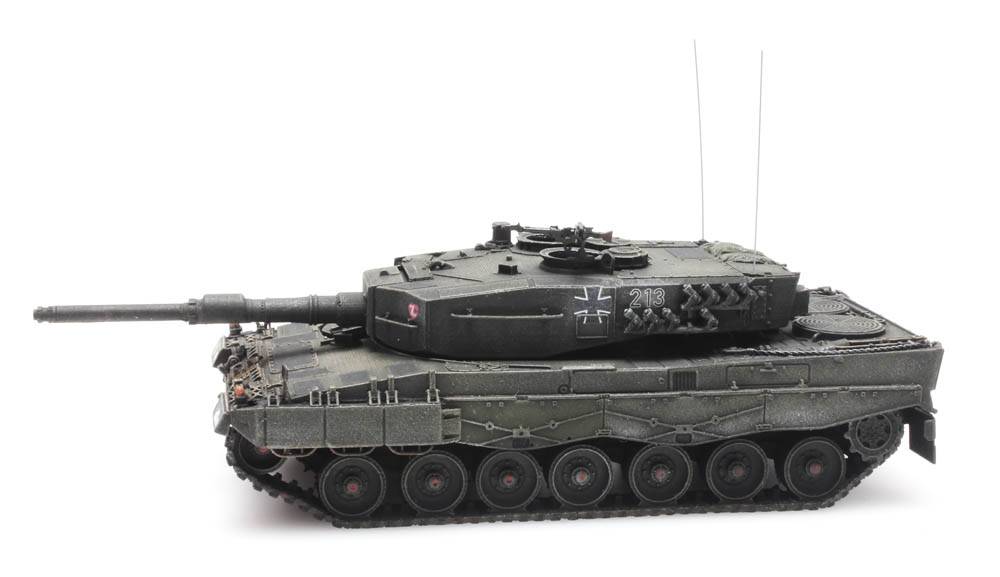

Leopard 2A2

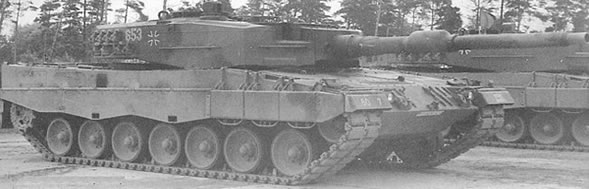

Leopard 2A3

Leopard 2A4

Leopard 2A4V

L2 Marksman

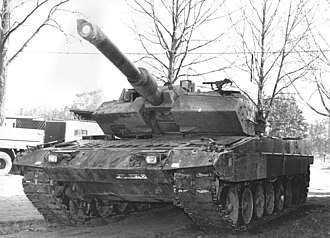

Leopard 2 Imp

Leopard 2A5

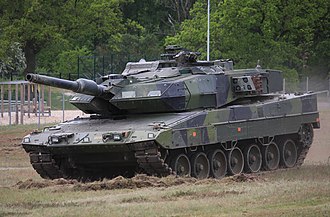

Stridsvagn 122

Leopard 2-140

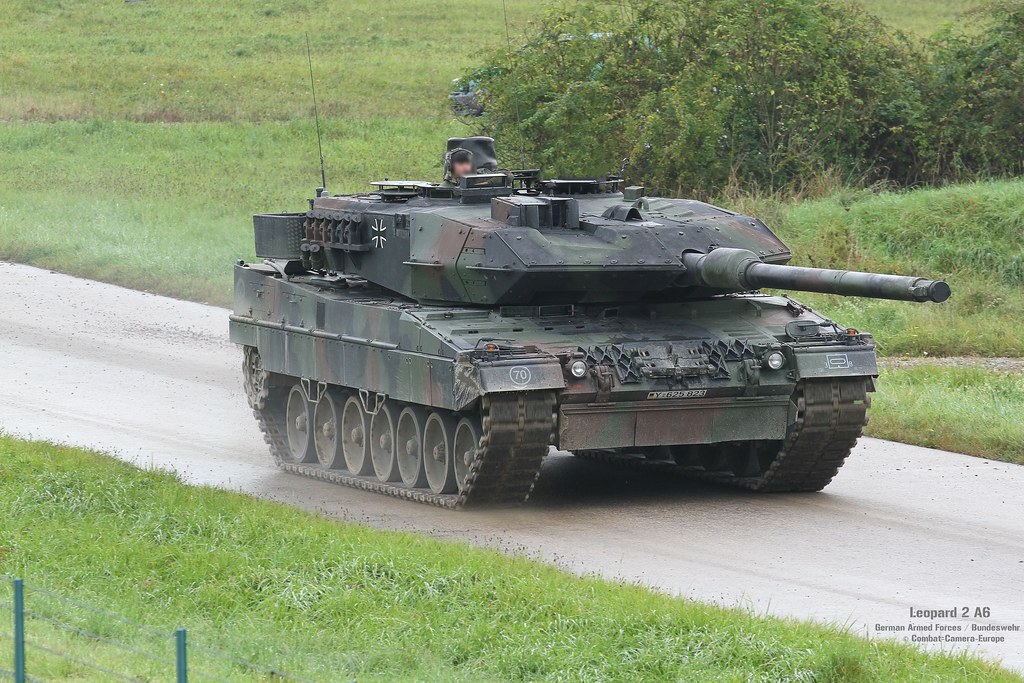

Leopard 2A6

Leopardo 2E

Leopard 2PL

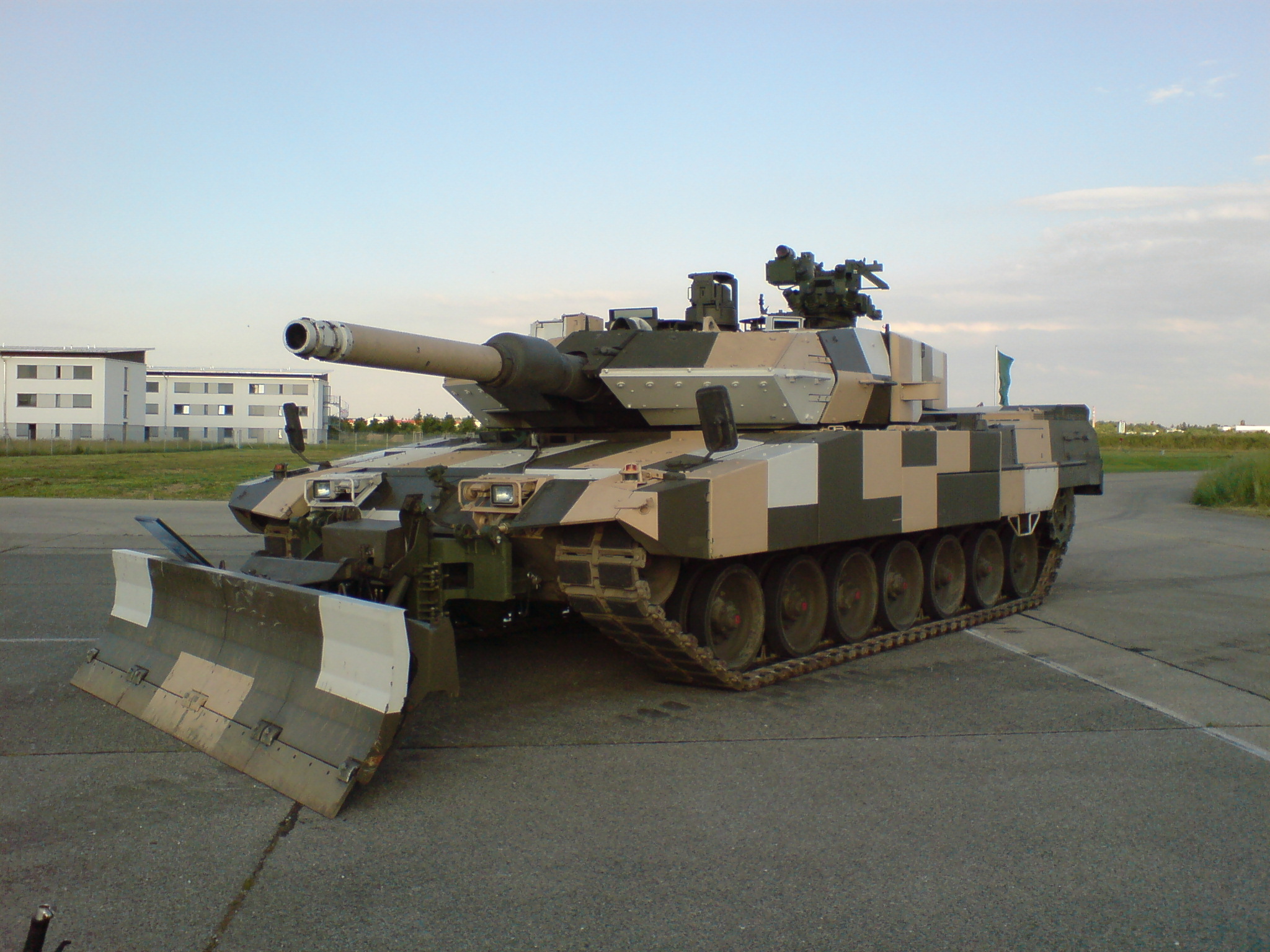

Leopard 2 PSO

Leopard 2A7

Leopard 2A7+

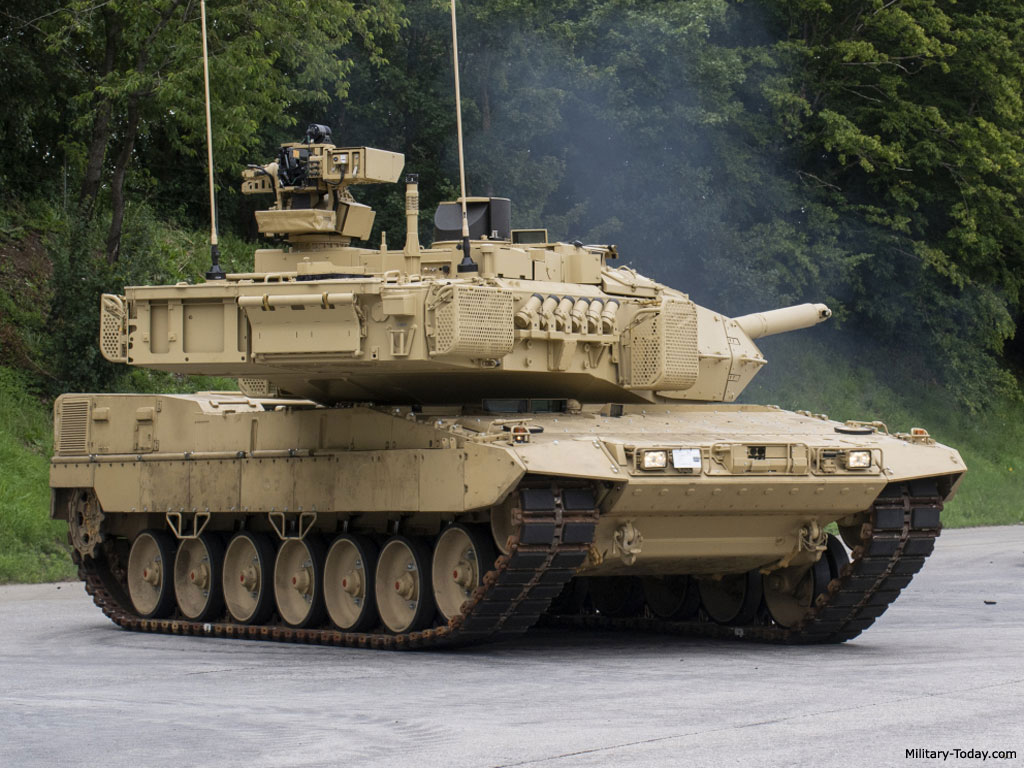

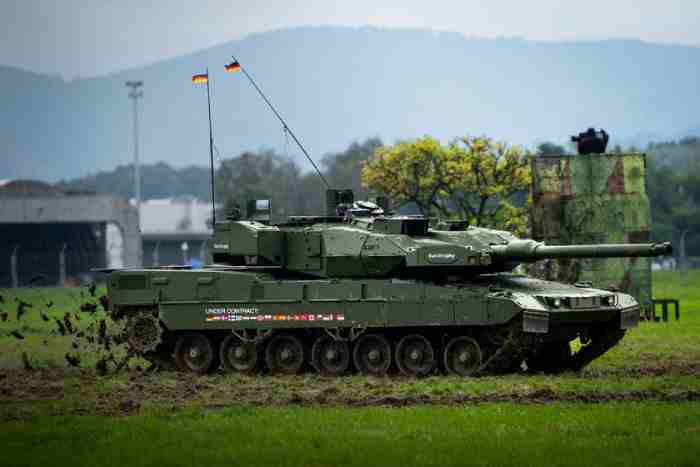

Leopard 2A8

Leopard 2A8 NOR

Engineering and driver training tanks

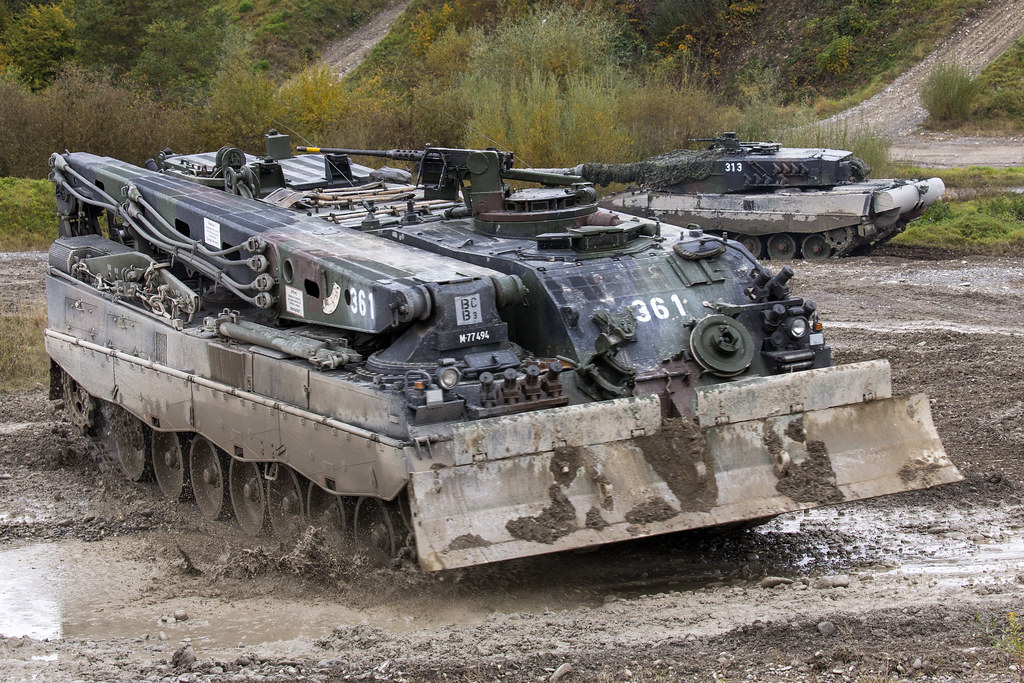

Bergepanzer BPz3 Büffel (Gr. Buffalo)

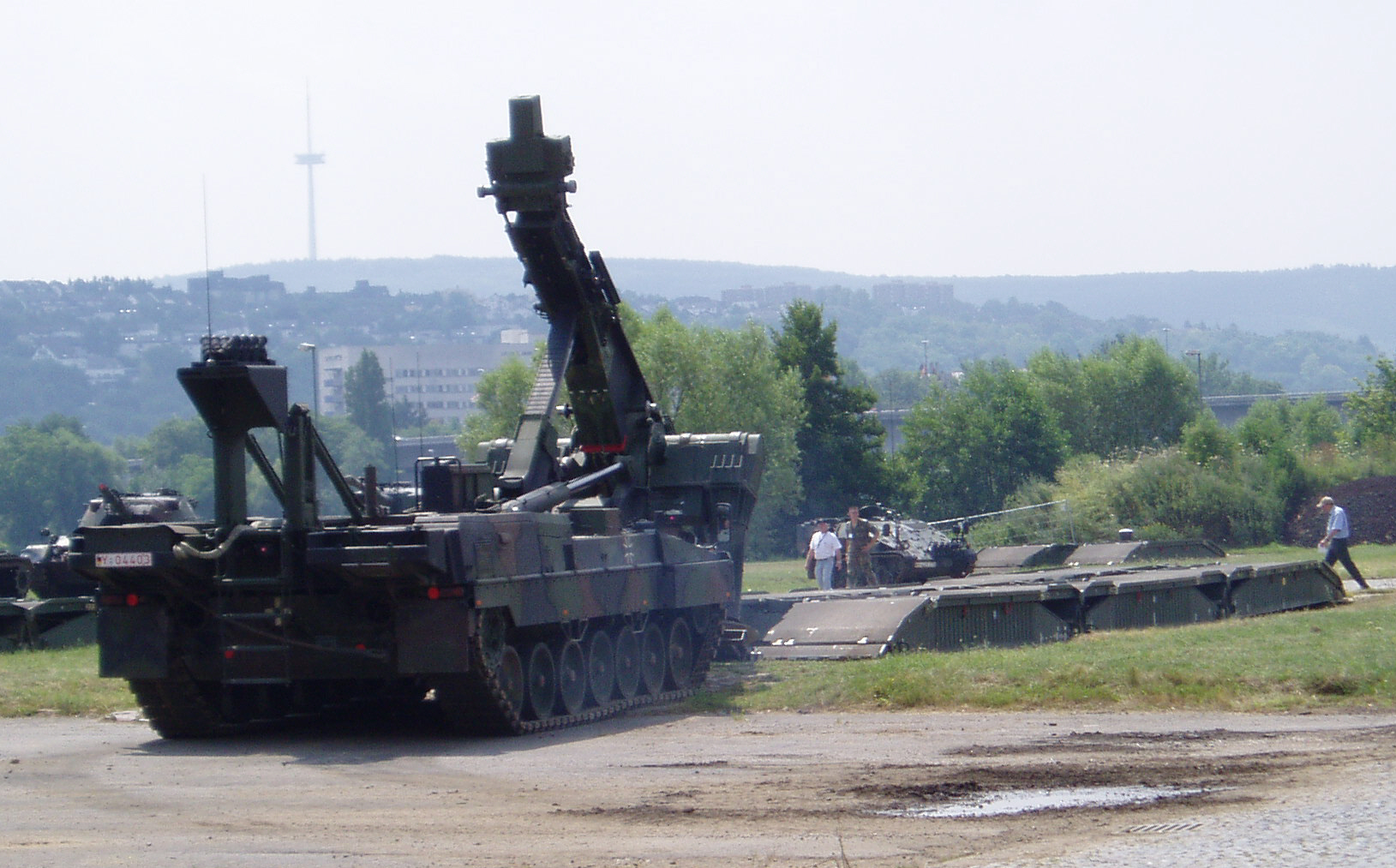

Panzerschnellbrücke 2

Panzerschnellbrücke Leguan

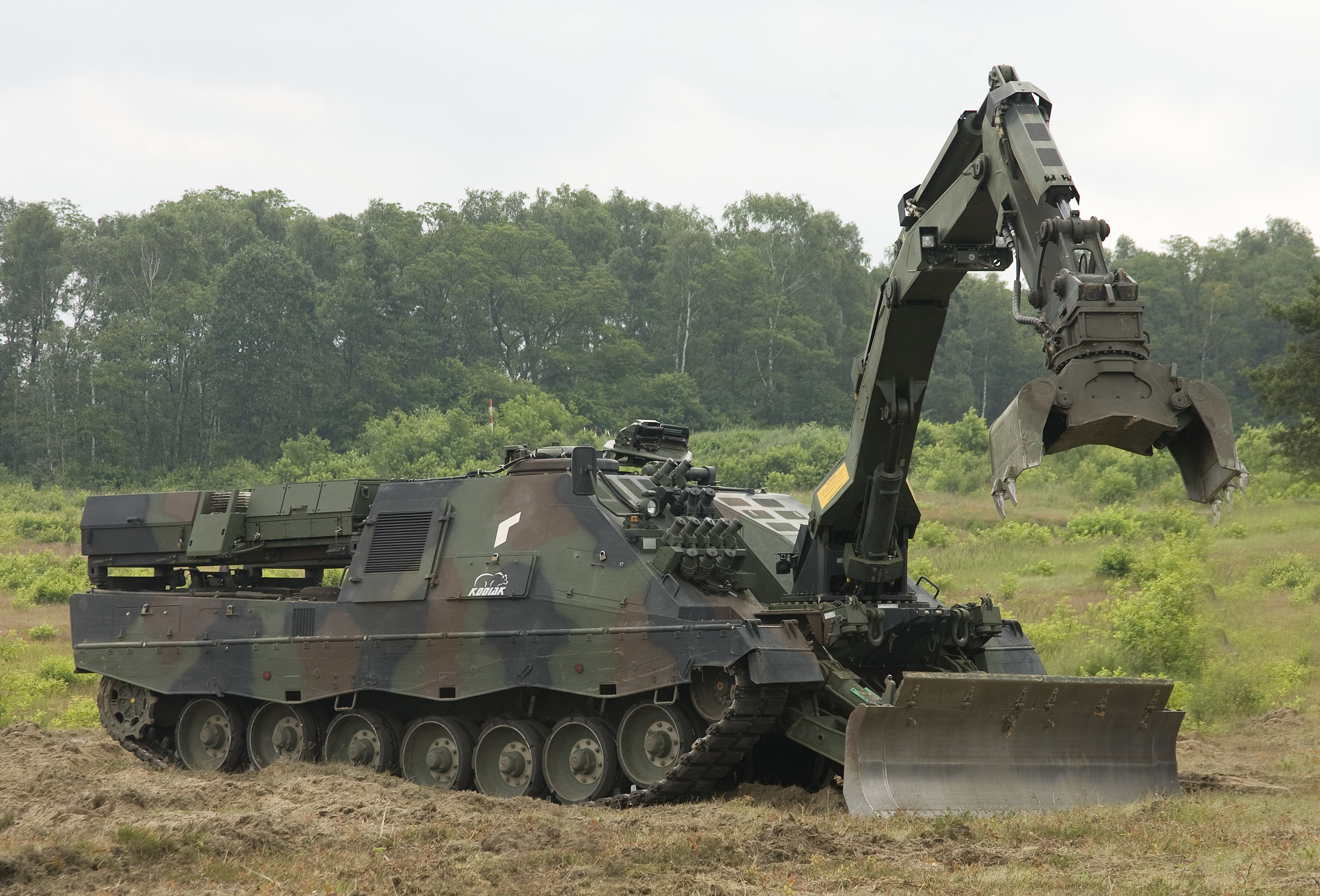

AEV 3 Kodiak

Fahrschulpanzer

Leopard 2R

Leopard 2L

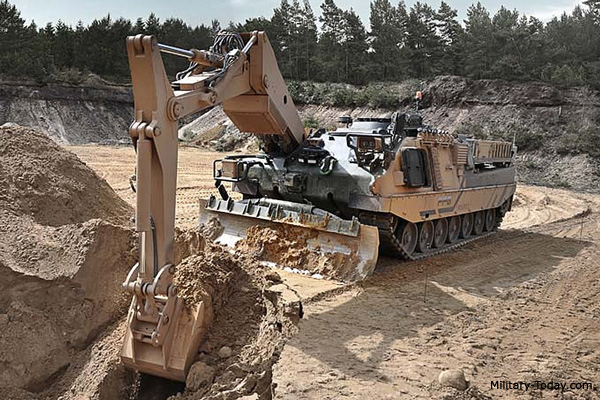

WISENT 2

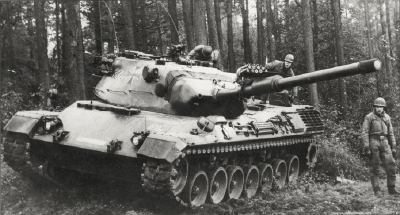

Even as the Leopard 1 was just entering service, the West German military was interested in producing an improved tank in the next decade. This resulted in the start of the MBT-70 development in cooperation with the United States beginning in 1963. However already in 1967 it became questionable whether the MBT-70 would enter service at any time in the foreseeable future. Therefore, the German government issued the order to research future upgrade options for the Leopard 1 to the German company Porsche in 1967.

This study was named vergoldeter Leopard (Gilded Leopard) and focused on incorporating advanced technology into the Leopard design. The projected upgrades added an autoloader, a coaxial autocannon and an independent commander's periscope. The anti-air machine gun could be operated from inside the vehicle and a TV surveillance camera was mounted on an extendable mast. The shape of the turret and hull was optimised using cast steel armour, while the suspension, transmission, and engine exhaust vents were improved.

source: wikipedia

Following the end of the Gilded Leopard study in 1967, the West German government decided to focus on the Experimentalentwicklung (experimental development) in a feasibility study and to develop new components for upgrading the Leopard 1 and for use on a future main battle tank programme. At first 25 million DM were invested, but after the industry came to the conclusion that with such a low budget the development of the two projected testbeds was not possible, a total of 30 to 32 million DM was invested. The experimental development was contracted to the company Krauss-Maffei, but with the obligation to cooperate with Porsche for the development of the chassis and with Wegmann for the development of the turret.

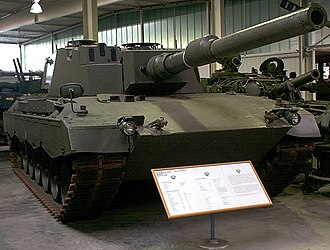

Two prototypes with different components were built with the aim of improving the conception of Leopard 1 in such a way that it would match the firepower requirements of the MBT-70. A high first-hit probability at ranges of 2,000 metres (6,600 ft) and the ability to accurately engage targets on the move using a computerised fire control system were the main goals of the experimental development. The resulting vehicles were nicknamed Keiler ("tusker"). Two prototypes (ET 01 and ET 02) of the Keiler were built in 1969 and 1970, both of them being powered by the MB 872 engine.

The MBT-70 was a revolutionary design, but after large cost overruns and technological problems, Germany withdrew from the project in 1969. After unsuccessful attempts at saving the MBT-70 by conceptual changes in order to eliminate the biggest issue—the driver being seated in the turret—it became clear in late 1969 that Germany would stop the bi-national development. The assistant secretary of the military procurement division of the German Ministry of Defence suggested reusing as many technologies developed for the MBT-70 as possible in a further programme, which was nicknamed Eber ("boar") due to his being named Eberhardt. The Eber used a modified MBT-70 turret and hull, with the driver being seated in the hull. Only a wooden mock-up was made.

One year later, a choice was made to continue the development based on the earlier Keiler project of the late 1960s, instead of finishing the development of the Eber. In 1971, the name of the design was determined as Leopard 2 with the original Leopard retroactively becoming the Leopard 1, and Paul-Werner Krapke became the project officer of the Leopard 2 program. Originally two versions were projected: the gun-armed Leopard 2K and the Leopard 2FK, which would be armed with the XM150 gun/launcher weapon of the MBT-70.

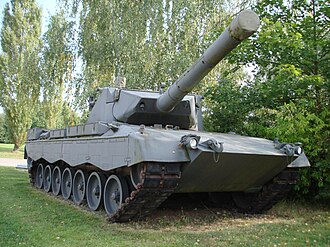

In 1971, 17 prototypes were ordered but only 16 hulls were built as the production of hull PT12 was cancelled. Ten were ordered initially before another seven were ordered. The 17 turrets were designated T1 to T17, and the hulls were designated PT1 to PT11 and PT13 to PT17. To test a larger number of components and concepts, each prototype was fitted with components not found on the other prototypes. Ten of the turrets were equipped with 105 mm smoothbore guns and the other seven prototypes were equipped with a 120 mm smoothbore gun.

Hulls PT11 and PT17 were fitted with a hydropneumatic suspension based on the MBT-70 design. The running gears of these two hulls had only six road wheels. Different types of auxiliary power units (APUs) were mounted in the prototypes. All turrets were equipped with a machine gun for air defence, except the turret mounted on PT11, where a 20 mm remotely operated autocannon was mounted. With the exception of hulls PT07, PT09, PT15, and PT17, all prototypes used the MB 873 engine. The road wheels were taken from the MBT-70 and the return rollers from the Leopard 1. The prototypes were designed with a projected weight of MLC50, which equals approximately 47.5 tonnes (46.7 long tons; 52.4 short tons). The welded turret utilised spaced armour formed by two steel plates. The prototypes were equipped with an EMES-12 optical rangefinder and fire control system, which later was adopted on the Leopard 1A4.

In mid-1973 a new turret was designed by Wegmann saving 1.5 tonnes (1.7 short tons) in weight. It was nicknamed the Spitzmaus-Turm (shrew turret) due to the highly sloped front. This design was only possible with the new EMES-13 optical rangefinder, which required a base length of only 350 millimetres (14 in) instead of the previous 1,720 millimetres (68 in). Based on experiences in the Yom Kippur War, a higher level of protection than the prototypes' heavily sloped spaced armour was demanded in late 1973 and the Spitzmaus-Turm was never produced.

The weight limit was increased from MLC50 to MLC60, which equals approximately 55 tonnes (54 long tons; 61 short tons). The T14 turret was modified to test a new armour configuration, taking on a blockier-looking appearance as a result of using vertical modules of spaced multilayer armour. It was also used to test the new EMES-13 optical rangefinder. The modified T14 turret was designated T14 mod. and was fitted with a fully electric turret drive and stabilization system, which was developed jointly by General Electric and AEG Telefunken.

source: wikipedia

In July 1973 German Federal Minister of Defence Georg Leber and his US counterpart James R. Schlesinger agreed upon a higher degree of standardisation in main battle tanks being favourable to NATO. By integrating components already fully developed by German companies for the Leopard 2, the costs of the XM1 Abrams, U.S. prototype tank developed after the MBT-70, could be reduced. A German commission was sent to the US to evaluate the harmonisation of components between the XM1 and Leopard 2. However, under American law it was not possible for a public bidder to interfere in a procurement tender after a contract with intention of profits and deadline was awarded to private sector companies.

As a result, the modification of the Leopard 2 prototypes in order to meet the US Army requirements was investigated. Following a number of further talks, a memorandum of understanding (MOU) was signed on 11 December 1974 between Germany and the US, which declared that a modified version of the Leopard 2 should be trialed by the US against their XM1 prototypes, after the Americans had bought and investigated prototype PT07 in 1973. The MOU obliged the Federal Republic of Germany to send a complete prototype, a hull, a vehicle for ballistic tests and a number of special ballistic parts to the US, where they would be put through US testing procedures for no additional costs.

The Leopard 2AV (austere version) was based on the experiences of the previous Leopard 2 development. It was created in order to meet the US requirements and the latest protection requirements of the German MoD. The T14 mod turret was used as the base for the Leopard 2AV's turret, but meeting the required level of protection for the hull required several attempts until the final ballistic trials on 23 to 26 June 1976. Following the US' preference of laser rangefinders, the turret of prototype PT19 was fitted with a laser rangefinder developed together with the American company Hughes.

In comparison with the earlier Leopard 2 prototypes, the fire control system was simplified by replacing the EMES-12 optical rangefinder and removing the crosswind sensor, the air pressure and temperature sensors, the powder temperature sensor, the PERI R12 commander sight with IR searchlight, the short-range grenade launcher for use against infantry, the retractable searchlight, the spotlight, the retractable passive night vision sight, the APU and the mechanical loading assistant.

Due to the design and production of the Leopard 2AV taking more time than expected, the shipment to the US and the US evaluation was delayed. It was not possible to test the Leopard 2AV before 1 September 1976. Despite the German wish that the Leopard 2AV and the XM1 prototypes would be evaluated at the same time, the US Army decided not to wait for the Leopard 2AV and tested the XM1 prototypes from Chrysler and General Motors beforehand

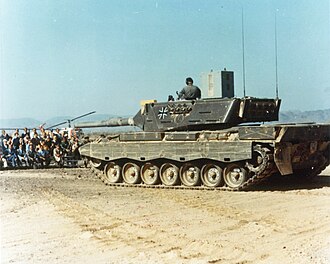

Two new prototype hulls and three turrets were shipped to the US: PT20 mounting a 105 mm rifled L7 gun and a Hughes fire control system, PT19 with the same fire control system but able to swap out the gun for the 120 mm Rheinmetall smoothbore gun, and the PT21 fitted with the Krupp Atlas Elektronik EMES-13 fire control system and the 120 mm Rheinmetall gun. The Leopard 2AV fully met the US requirements. A study made by the American FMC Corporation showed that it was possible to produce the Leopard 2AV under licence in America without exceeding the cost limits set by the US Army. Before the trials were finished, it was decided that instead of the US Army possibly adopting the Leopard 2AV, the focus was shifted to the possibilities of common components between the two tanks. FMC, after having acquired the licenses for the production of the Leopard 2AV, decided not to submit a technical proposal, as they saw little to no chance for the US Army adopting a vehicle not developed in the US.

The US Army evaluation showed that on the XM1 a larger portion of the tank's surface was covered by special armour than on the Leopard 2AV. Differences in armour protection were attributed to the different perceptions of the expected threats and the haste in which the Leopard 2AV was designed to accommodate special armour. On mobility trials the Leopard 2AV performed equal to better than the XM1 prototypes. The AGT-1500 turbine engine proved to consume about 50% more fuel and the Diehl tracks had a higher endurance, while the tracks used on the XM1 prototypes failed to meet the Army's requirements.The heat signature of the MTU diesel engine was much lower. The fire control system and the sights of the Leopard 2 were considered to be better and the 120 mm gun proved to be superior. The projected production costs for one XM1 tank were $728,000 in 1976, and the costs for one Leopard 2AV were $56,000 higher

After the American evaluation of the Leopard 2AV and the US Army's decision to opt for the XM1 Abrams, both American and German sources blamed the other side. According to American literature, it was discovered that the Leopard 2AV prototype used for mobility trials was underweight.

In Germany, the test conditions were criticised for being unrealistic and favouring the XM1. Instead of using actual performance data, the calculated hypothetical acceleration was used. The XM1 was found to have a slightly higher rate of fire despite having internal layouts similar to the Leopard 2AV because the XM1 prototypes were manned by professional crews, while the Leopard 2AV had to be manned by conscripts in order to prove that the Leopard 2AV was not too complicated. Firing on the move was demonstrated on flat tracks, which nullified the better stabilization systems of the Leopard 2AV.

source: wikipedia

The decision to put the Leopard 2 tank in production for the German army was made after a study was undertaken[when?], which showed that adopting the Leopard 2 model would result in a greater combat potential of the German army than producing more Leopard 1A4 tanks or developing an improved version of the Leopard 1A4 with 105/120 mm smoothbore gun, improved armour protection, a new fire control system and a 890 kilowatts (1,190 hp) or 1,100 kilowatts (1,500 hp) engine. Various changes were applied to the Leopard 2 design before the series production started in 1979. The engine, transmission, and suspension were slightly modified and improved. The ballistic protection of the turret and hull was improved and weak spots were eliminated.

The turret bustle containing the ready ammunition racks and the hydraulic system was separated from the crew compartment and fitted with blowout panels. The development of several new components was introduced to the Leopard 2 during the Leopard 2AV development and after the US testing was completed. For the series version, the Hughes-designed laser rangefinder made with US Common Modules was chosen over the passive EMES-13 rangefinder. The EMES-13 system was considered to be the superior solution, but the Hughes system was cheaper and fully developed.

The German company Krupp-Atlas-Elektronik acquired the licence of the Hughes design and modified it to meet the needs of the German army. The modified rangefinder received the designation EMES-15. The installation of the US AGT-1500 turbine engine in the Leopard 2 was tested by MaK. The AGT-1500 was from the United States and required deep modifications to the Leopard 2's chassis. However, driving tests at the WTD 41 revealed a number of drawbacks such as high fuel consumption and the poor performance of the transmission including the brakes. This project was thus terminated.

In January 1977 Germany ordered a small pre-series of three hulls and two turrets which were delivered in 1978. These vehicles had increased armour protection on the front of the hull. One of the hulls was fitted with the earlier T21 turret and was used by the German army school in Munster for troop trials until 1979. In September 1977, 1800 Leopard 2 tanks were ordered, to be produced in five batches. The main contractor was Krauss-Maffei, but Maschinenbau Kiel (MaK) was awarded a contract for producing 45% of the tanks. The first batch consisted of 380 tanks. The delivery of six tanks was scheduled for 1979, 114 for 1980, 180 for 1981, and 300 tanks each following year.

The first series-production tank was delivered on 25 October 1979. By 1982, all of the first batch of 380 Leopard 2 tanks had been completed. 209 were built by Krauss-Maffei (chassis no. 10001 to 10210) and 171 by MaK (chassis no. 20001 to 20172). The first production tanks were fitted with the PzB-200 image intensifier due to production shortages of the new thermal night-sight system, which was later retrofitted to the earlier models. After the original five batches, three further batches of Leopard 2 tanks were ordered, increasing the number of Leopard 2 tanks ordered by Germany to a total of 2125. The sixth batch was ordered in June 1987 and consisted of 150 tanks, which were produced between January 1988 and May 1989. The seventh batch of 100 tanks was produced between May 1988 and April 1990. The last batch for the German army totalling 75 tanks was produced from January 1991 to March 1992.

During its production run during the Cold War, 16 Leopard 2 tanks were being produced per month. The vehicles were produced at a slower rate in the following decades, however KMW still retained the capacity to return to such manufacturing levels should they need to be made again at a higher rate and supply chains are able to deliver sufficient materials.

source: wikipedia

While previous models only varied in detail, the Leopard 2A4 introduced a digital ballistic computer and an improved fire extinguishing system. Starting with the sixth batch, tanks were fitted with an improved armour array and new side skirts. In 1984 the German military procurement agency stated a number of requirements for a future Leopard 2 upgrade. In 1989, the Kampfwertsteigerung (combat potential improvement) programme was initiated in Germany with the delivery of first prototypes. The official military requirements were published in March 1990.

The KWS programme was projected to consist of three stages. The first stage replaced the Rheinmetall 120 mm L/44 gun barrel and the corresponding gun mount with a longer barrelled and more lethal L/55 version.This stage was adopted in the form of 225 Leopard 2A6 tanks, starting in 2001 and lasting until 2005. Stage 2 focused on improvements of armour protection and survivability: it was adopted in the form of the Leopard 2A5, starting in 1995. The base armour of the tank was exchanged and additional armour modules were installed at the turret. The first batch of 225 Leopard 2 tanks was upgraded to Leopard 2A5 configuration between 1995 and 1998; a second batch of 125 followed from 1999 to 2002.

The third stage was the planned replacement of the Leopard 2 turret by a new turret fitted with a 140 mm NPzK tank gun, an autoloader, and the IFIS battlefield management system. The ballistic protection at the hull was to be improved. Originally a total requirement for 650 Leopard 2 tanks with KWS 3 was projected. It was never finalised, but the 140 mm NPzK tank gun was tested on an older prototype. In 1995 it was decided to cancel due to changes in the political environment. The funds were redirected to the Neue Gepanzerte Plattformen (New Armoured Platforms) project of the German army. The Leopard 2A6M was developed with a kit providing enhanced protection against mines that can detonate below the hull (like mines with bending wire triggers) and explosively formed penetrator mines. The weight of the Leopard 2A6M is 62.5 tonnes.

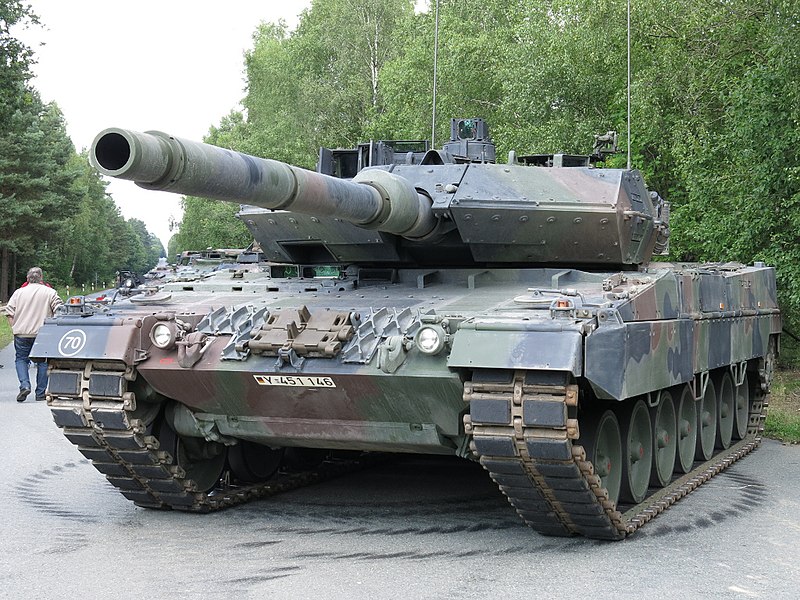

The latest version of the tank is the Leopard 2A7, which entered service in an initial batch of 20 tanks in 2014. Already before the first Leopard 2A7 tank was handed over to the German Army, plans for upgrades were made. At this time an "extensive" increase in combat value, while retaining the original mobility of the Leopard 2, was planned. The optics of the tank will also be improved.

In April 2015, Welt am Sonntag claimed that tungsten (wolfram) rounds used in Leopard 2 cannot penetrate the Russian T-90 or the modernized version of the T-80. They also stated that the German military will develop a new improved round, but it will be exclusively developed for the Leopard 2A7.

In 2015 Rheinmetall disclosed that it was developing a new 130 mm smoothbore gun for the Leopard 2 tank and its successor. This gun will offer a 50% increase in performance and penetration. Marketing for the new gun was slated to begin in 2016.

source: wikipedia

The Leopard 2 first entered service in 1979, and its service life is anticipated to end around 2030. In May 2015, the German Ministry of Defence announced plans to develop a tank jointly with France as a successor to both the Leopard 2 and Leclerc tanks. Technologies and concepts will be investigated to determine what capabilities are needed in a future tank. Deployment of the new tank, titled Main Ground Combat System (MGCS), will be preceded by incremental upgrades to the Leopard 2, including a new digital turret core system and situational awareness system and an active protection system (APS).

A short-term lethality increase will come from a higher pressure 120 mm gun firing new ammunition, expected to deliver 20 percent better performance than the L/55. Mid-term efforts will focus on a Rheinmetall 130 mm cannon concept offering 50 percent better armour penetration. With the Russian T-14 Armata being equipped with the Afghanit, an active protection system designed to mitigate the effectiveness of ATGM, more importance is being placed on direct-fire weapons.

source: wikipedia

Germany has fielded about 2,125 Leopard 2 main battle tanks in various versions, but many were sold following German reunification. The Leopard 2 became very popular in the 1990s, when the shrinking German army offered many of its redundant Leopard 2s at a reduced price. It became successful enough in Europe that the manufacturer started calling it the Euro Leopard, despite France, Britain, and Italy all operating their own MBTs. With further non-European orders, the name "Global-Leopard" is now used instead. Leopard 2 tanks have also been resold by original export customers, although reexport has always been conditional on consent from the German government who control the platform's export licence. Other countries have bought newly manufactured vehicles or have produced them locally under licence.

Europe

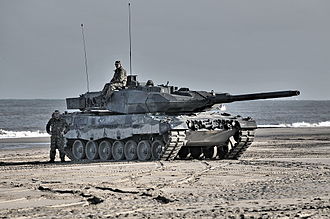

The Netherlands ordered 445 Leopard 2 tanks on 2 March 1979, after examining the results of the Leopard 2AV in the United States. It became the first export customer of the Leopard 2 and the vehicles were delivered between July 1981 and July 1986. Dutch Leopard 2 tanks have been subsequently exported to Austria, Canada, Norway, and Portugal. Leopard 2 tanks remaining in Dutch service have been upgraded to 2A5 and 2A6 standards.

The Swiss Army decided to purchase Leopard 2 tanks over the M1A1 Abrams after trialling both tanks between August 1981 and June 1982. The Swiss decision was made in August 1983 and the funding was approved by the government in 1984. Thirty-five of the tanks were delivered by Kraus-Maffei by June 1987. Eidgenössische Konstruktionswerkstätte Thun started license production of 345 additional vehicles in December 1987.

After investigating the option of a locally developed replacement for the Strv 103 tank, Sweden decided to buy a foreign tank model. The Leopard 2 Improved (Leopard 2A5 prototype) won the competition against the M1A2 Abrams and the French Leclerc. The Swedish military also evaluated the Soviet T-80U tank, but separately from the other tanks. After intensive tests from January to June 1994, the Swedish military opted for the Leopard 2. The Swedish military found that the Leopard 2 Improved met their military demands by 90%. The M1A2 met the Swedish requirements by 86%, whereas the Leclerc met 63%. In June 1994 Sweden ordered the production of 120 modified Leopard 2A5, to be known as Stridsvagn 122 (Strv 122) in Swedish service. Strv 122 features Swedish-developed appliqué armour, a new command system, and improved electronics. Of the 120 Strv 122, 29 were manufactured in Germany by Krauss-Maffei Wegmann while the other 91 were manufactured by the Swedish firms Bofors and Hägglunds. The first Stridsvagn 122 was delivered in December 1996. These remain in Swedish service and have received periodic upgrades.

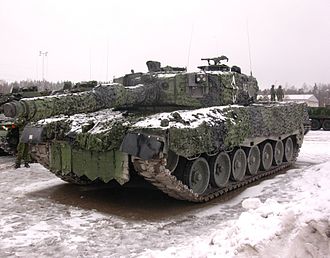

Sweden also leased and later bought a total of 160 Leopard 2A4 tanks in 1994 and 1995, known in Swedish service as Stridsvagn 121 (Strv 121). The first Strv 121 was delivered in February 1994. The Strv 121 fleet was mothballed by 2006. Sweden has retained a number of Strv 121 tanks as training aids; 6 Strv 121 have since been converted into AEV 3 Kodiak armoured engineering vehicles, and a further 6 have been converted into Leguan armoured bridgelayers.

Denmark bought 51 ex-German Leopard 2A4 tanks after the Danish military school, the Hærens Kampskole, recommended basing the adoption of a new tank on the Swedish army trials. The first tanks were delivered in 1998, but the upgrade to Leopard 2A5 level was already decided the next year. In 2004-2006 the Danish army bought another six ex-German Leopard 2 tanks.

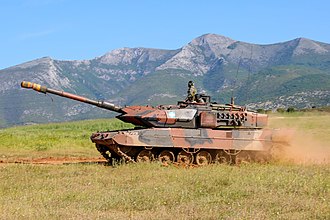

In 1998, Greece held a competition to determine the main battle tank for the Hellenic Army. The Leopard 2 Improved managed to outperform the Challenger 2E, Leclerc, M1A2 Abrams, T-80U, and T-84 and was chosen by the Greek officials. In March 2003 Greece ordered 170 Leopard 2 tanks, of which 140 were locally assembled. Greece also bought 183 Leopard 2A4 and 150 Leopard 1 tanks.

Spain initially leased 109 Leopard 2A4 tanks, after Krauss-Maffei withdrew from the Lince development, a special lighter version of the Leopard 2 developed together with Santa Bárbara Sistemas. Before the end of the Lince tank, Spain had already rejected the M1A1 Abrams and the Vickers Valiant. After deciding to purchase the leased tanks, Santa Bárbara Sistemas acquired the licence to locally produce 219 Leopard 2A6 tanks for the Spanish army.

Poland received 128 Leopard 2A4 tanks from German army stocks in 2002. In 2013 Poland ordered a further 119 ex-German Leopard 2s. Finland bought 124 used Leopard 2A4 tanks and six armoured bridge-layer Leopard 2L tanks from Germany in 2002 and 2003. The tanks served as replacements for the old Soviet-made T-55 and T-72M1. The Netherlands resold 114 of their tanks (and one turret) to Austria, 80 to Canada in 2007, 52 to Norway, 37 to Portugal and 100 to Finland.

In December 2018, Hungary placed an order for 44 Leopard 2A7+s and 12 second-hand 2A4s. The order coincided with the procurement of 24 Panzerhaubitze 2000, and was expected to replace Hungary's current fleet of T-72 tanks "no sooner than 2020".

In February 2023, the Norwegian Prime Minister, Jonas Gahr Stoere, announced that Norway would be ordering 54 new Leopard 2A7 tanks at a cost of NKr 19.7 billion with a further option for 18 vehicles to be delivered at a later date. The first Leopard 2A7s are due to be delivered by 2026, and operational by 2031. The Norwegian government had been weighing up either the Leopard 2A7 or the South Korean K2 Black Panther as a replacement for its aging Leopard 2A4 fleet. The tanks will be designated Leopard 2A8 NOR.

Beyond Europe

In 2005, Turkey ordered 298 Leopard 2 tanks from German army stocks. The Leopard 2 was chosen in 2001 after successfully competing one year earlier in the Turkish army trials against the T-84 Yatagan, Leclerc and a version of the M1A2 Abrams fitted with a German MTU diesel engine. Turkey wanted to buy 1,000 Leopard 2 tanks in 1999, but the German government rejected the deal.

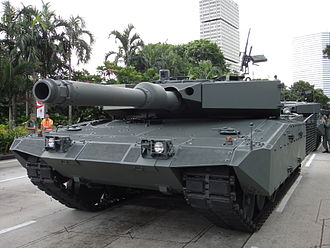

Singapore bought 96 Leopard 2 tanks from Germany in 2006. Chile bought 172 ex-German Leopard 2A4 tanks and 273 Marder 1A3 IFVs in 2007.

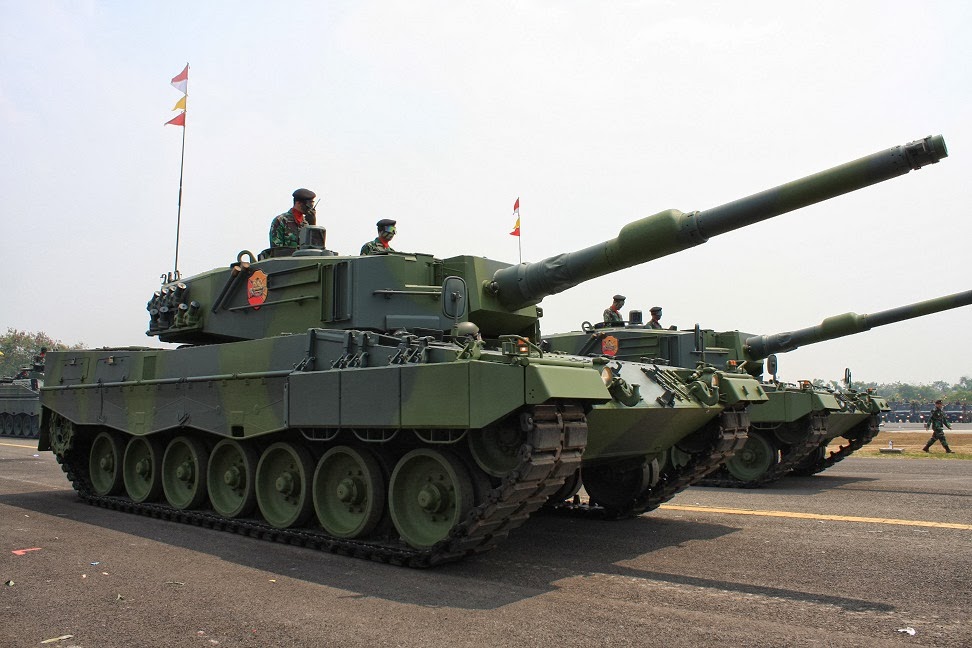

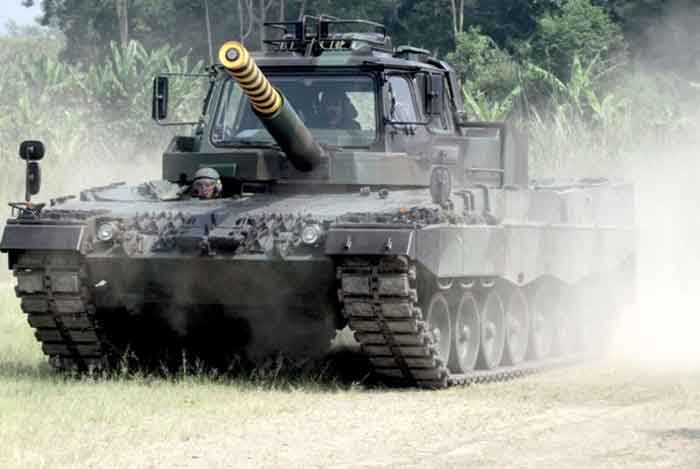

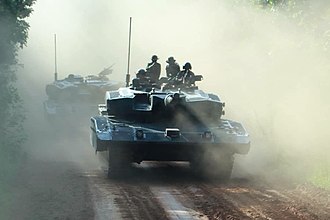

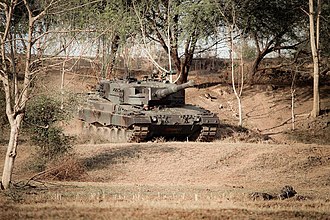

Indonesia ordered 103 Leopard 2 tanks and 42 Marder 1A3 IFVs in 2013. At first the export of heavy weapons to Indonesia was not allowed by the German government, due to the questionable human rights record of Indonesia. 61 of the 103 Leopard 2 tanks will be upgraded by Rheinmetall to the Leopard 2RI standard, based on Rheinmetall's Revolution modular upgrade concept.

Qatar ordered 62 Leopard 2A7 tanks and 24 Panzerhaubitze 2000s in 2013. The delivery of the tanks started in late 2015 and the first tanks were displayed on a military parade in December 2015.

Transfer to Ukraine

On 2 July 2023 Ukraine had reportedly received 54 Leopard 2A4 from NATO-member countries

Political discussions

Since April 2022, in the wake of the Russian invasion, the Ukrainian government has requested that their allies donate Western-made main battle tanks. Poland, Finland and others have all announced a willingness to contribute Leopard 2 tanks from their stocks, with around 100 tanks from various states ready to be transferred to Ukraine. However, when Germany exported the tanks to these countries, it had made reexport conditional on a German government permit, as based on the Kriegswaffenkontrollgesetz and Außenwirtschaftsgesetz. Until 22 January 2023, it was unclear whether such a consent would be provided with Germany determined to avoid any perception of escalating the conflict, and wary of being labelled an aggressor. Germany has also been keen to extract an American commitment to provide its own M1 Abrams tanks, before sending German-made Leopard 2 tanks to Ukraine.

The matter was discussed at a conference of defence ministers from NATO members and allies, but no agreement was reached. The German position was heavily criticized by some of the other European governments with Poland threatening to unilaterally export their Leopards if permission from Berlin was not given. The Polish and Ukrainian governments then announced that Ukrainian soldiers would start training on Polish Leopard 2 tanks in Poland.

On 22 January 2023, the German minister for foreign affairs, Annalena Baerbock, told French media that Germany "would not stand in the way" of any Polish decision to send Leopard 2 tanks to Ukraine but noted that "for the moment the question has not been asked." Two days later, Poland made an official request for permission to transfer Polish Leopards to Ukraine.

On 24 January Der Spiegel reported that the German Chancellor, Olaf Scholz, would the following day, officially announce the transfer of an undisclosed number of German Leopard 2 tanks to Ukraine, beginning with 14 Leopard 2A6s from the active Bundeswehr inventory. The German government would also give permission to any country seeking to reexport Leopard 2 tanks to Ukraine. These reports were formally confirmed by the German government on 25 January.

It was also reported that Boris Pistorius, the German defence minister, was encouraging Leopard-operating states to start training Ukrainian personnel in their use.

The German decision to provide and approve the provision of Leopard 2 tanks to Ukraine came after U.S. President Joe Biden decided to provide Ukraine with M1 Abrams tanks, as Germany insisted on moving in coordination with its allies. The decision to provide M1 Abrams tanks had previously been opposed by the Pentagon.

On 15 February 2023, Pistorius expressed his frustration at Germany's allies in their announcement of any donations of Leopard 2 tanks to Ukraine, saying it had "not been exactly breathtaking, to put it mildly." Since the change in German position on exports, only Poland had matched the German promise to provide 14 tanks - the two largest donations from a single country.

Germany

On 25 January 2023, the German government confirmed that it would make 14 Leopard 2A6 (a company-strength number) available for Ukraine and would give authorisation to European partners to reexport their vehicles. The goal is for European Leopard 2 operators to provide two battalions worth, or 88 tanks, to Ukraine.

According to the German government, the tanks will be delivered to Ukraine after training Ukrainian service personnel. This process would take up to three months. Some tanks are held by the Bundeswehr, others by the Leopard manufacturer Rheinmetall. The latter has said they could be ready to be dispatched by March 2023. However, they also warned that some vehicles held in long-term storage would require extensive refurbishment and updating before they could be considered suitable for combat in Ukraine. On 26 January, Pistorius, the German minister of defense, stated that the tanks would be delivered in late March or early April. On 24 February 2023, the German Department of Defence confirmed Germany would increase its Leopard 2A6 contribution from 14 to 18, thus providing 1 full tank battalion together with the contributions of Portugal and Sweden.

On 27 March 2023, Germany delivered 18 Leopard 2A6 tanks to Ukraine with two accompanying armoured recovery vehicles and necessary spare parts.

On 28 March 2023, the security board of the Swiss National Council recommended that 25 Leopard 2 in storage should be sold to the German manufacturer Krauss-Maffei-Wegmann so that Germany can replace some of its own tanks now serving in Ukraine. As of this day, Switzerland keeps 96 Leopard 2 in storage. As the tanks' sale requires decommissioning, the Bundeswehr waits for approval by the Swiss parliament.

On 27 September 2023, the Swiss parliament has voted to decommission 25 Leopard 2 tanks, allowing them to be sold back to Germany. Germany has given assurances that ex-Swiss tanks will not be sent to Ukraine.

Poland

Poland welcomed the German decision to allow the transfer of Leopard 2 tanks to Ukraine, with the Polish government announcing on 25 January it would transfer 14 Leopards to Ukraine from a total Polish stock of 247, in addition to a further 50–60 Soviet-era tanks. On 24 February 2023, the first 4 Leopard 2A4 tanks from Polish stocks were delivered to Ukraine. These are the first Leopard 2 tanks to be operated by Ukraine.

Canada

On 26 January 2023, the Canadian Defence Minister, Anita Anand, announced that Canada would be sending four Leopard 2A4 tanks to Ukraine, with the potential for more to follow. These vehicles were reportedly 'combat ready.' Canada will also provide appropriate training to Ukrainian forces who will go on to operate these tanks. The first Canadian Leopard 2 tanks had arrived in Poland on 5 February, to allow Ukrainian troops to begin training. On 24 February, the Canadian Prime Minister, Justin Trudeau, announced that Canada would be sending a further four Leopard 2A4 tanks to Ukraine along with 1 armoured recovery vehicle (ARV) and 5,000 rounds of ammunition.

Czech Republic

On 20 January 2023 the Czech Defense Ministry issued a statement that the media reports indicating the Czech Republic and Slovakia were willing to give up their Leopard 2 tanks for Ukraine were false, and that rumors that the Czech Republic would receive American Abrams tanks in exchange for Leopards were also false. As of December 2022, both countries had only received 1 Leopard 2A4 each from Rheinmetall as part of Germany's Ringtaush program in exchange for them delivering older Soviet equipment to Ukraine, while the remaining Leopard 2A4s are still being refurbished (expected to be delivered throughout 2023).

Denmark

While it was reported in the international press that Denmark had signalled that it could contribute a number of tanks, there was no official indication from the Danish Government that any Danish Leopard 2's would be sent to Ukraine. Of the Danish inventory of 44 tanks, 14 were deployed to Estonia as part of NATO EFP, with a further number receiving upgrades at the German manufacturers. Some Danish opposition politicians voiced support for a transfer of Danish tanks. Unlike those considered by other countries, the Danish Leopards are of the new 2A7 standard, which would represent some logistic and mechanical challenges compared to the other variants. Denmark instead announced on 7 February that it was jointly purchasing 100-178 Leopard 1A5 tanks with Germany and the Netherlands. Denmark also announced on 20 April 2023 that they would jointly finance with the Netherlands the purchase and refurbishing of 14 Leopard 2A4 for Ukraine from private industry stocks.

Finland

Finland had suggested before the German decision on reexport, that it could supply Ukraine with a limited number of Leopard 2 tanks. The Finnish President, Sauli Niinistö, warned that "the number of tanks [to be sent to Ukraine] cannot be large, since Finland borders on Russia and is not part of NATO." On 23 February Finland announced it will give 3 Leopard 2R mine clearing vehicles to Ukraine. Finnish total stock of this type will return the same (6) with planned purchase of 3 replacement vehicles from Germany.

Greece

On 25 January 2023 it was reported that Greece was one of the countries that had indicated it would supply Leopard 2 tanks to Ukraine. On 29 January 2023 it was erroneously reported that approximately 14 Leopard 2 tanks would be provided, though it was unclear if it would be the 2A4 or 2A6 HEL variant. However, on 31 January, Greek Prime Minister Kyriakos Mitsotakis clarified that Greece would not supply any Leopard tanks to Ukraine, arguing "they are absolutely necessary for our defense posture."Leaked Pentagon documents revealed that Greece was preparing to donate 5 of its Leopard 2 tanks to Ukraine, though Greek defense minister Nikolaos Panayiotopoulos reiterated later in April his government's opposition to tank deliveries to Ukraine, making confirmation of the delivery uncertain.

Netherlands

The Netherlands was considering Ukrainian requests for Leopard 2 tanks, with Prime Minister Mark Rutte suggesting that the Dutch government could purchase tanks from other countries and donate them. There were also some discussions about Netherlands purchasing the 18 Leopard 2A6 tanks they lease from Germany. No refusal was made from Germany to sell them as no formal request to buy them was made; both countries agreed that they were critical to the operations of the joint German-Dutch military unit. However, the Netherlands agreed to supply ammunition for Leopard tanks and announced it had not abandoned its intention to contribute to the tank initiative, while also noting it was helping to purchase Leopard 1A5 tanks with Denmark and Germany. The Netherlands later announced it was jointly financing with Denmark the purchase and refurbishing of 14 Leopard 2A4 for Ukraine from private industry stocks, with delivery expected in early 2024.

Norway

On 25 January 2023, Norway pledged to donate spare Leopards to Ukraine with reports speculating that between four and eight of its 36 Leopard 2A4 tanks would be sent. Norwegian defence minister Bjørn Arild Gram said in an interview with Norwegian public television NRK: "Norway and the government support the donation of battle tanks to Ukraine. Norway will take part," but did not specify how many would be sent. On 14 February 2023, Gram announced that 8 Norwegian Leopard 2 tanks and 4 Leopard 1 derived "special purpose vehicles" would be handed over to Ukraine. The special purpose vehicles turned out to be a mix of 3 NM189 AEVs and 1 NM217 ARV. In February 2023, Norway ordered 54 Leopard 2A7 tanks (later changed to 2A8 variant) to be delivered from 2026, with a further option for 18 vehicles if necessary.

Portugal

When the German government changed its position on the reexport of Leopard 2 tanks, it was reported that the Portuguese government was preparing to send four of their Leopard 2A6 tanks to Ukraine. On 4 February, Prime Minister António Costa confirmed that Portugal would send Leopards to Ukraine, but did not confirm the number of vehicles set to be delivered. It is understood that Portugal is working with Germany to obtain the necessary parts to repair inoperable tanks in its inventory of 37 Leopard 2 tanks, but it has been widely reported by local media that most are inoperable. Costa expressed hopes that Portuguese tanks would be delivered by March 2023. On 14 February, it was reported that Portugal had earmarked 3 Leopard 2A6 tanks for donation to Ukraine. All 3 were confirmed donated on March 27 together with the 18 German Leopard 2A6.

Slovakia

On 25 January 2023, Slovakia announced it was not considering the transfer of any of its Leopard 2A4 tanks to Ukraine, but were willing to provide T-72 tanks if other allies replaced them with other tanks. The reason cited for this was that Slovakia had only received 1 of the 15 Leopard tanks it was promised as part of Germany's Ringtaush program, which it was getting in exchange for supplying Ukraine with 30 Soviet-era infantry fighting vehicles.

Spain

On 4 June 2022 it was reported that Spain was considering providing 40 of its 53 retired Leopard 2A4 tanks stored in Zaragoza. On 8 June German Chancellor Olaf Scholz denied receiving any formal request from Spain for an export permit for Leopard 2 tanks to Ukraine.However it was later confirmed on 10 June by the Spanish defense minister they were considering the transfer. On 12 June, anonymous government sources told Der Spiegel that the Scholz government blocked any transfer of Leopard tanks to Ukraine, arguing this "would constitute a departure" from an informal NATO decision not to provide Western tanks at that time. By 2 August, Spain officially backtracked on its decision, arguing the tanks at Zaragoza were in "deplorable condition" and that it could not send any.

The Spanish government was later reported to be considering to send an unconfirmed number of Spanish Leopard 2E tanks to Ukraine in January 2023 following a meeting of the Ukraine Defense Contact Group. On 14 February the Spanish defence minister Margarita Robles confirmed Spain was providing training to 55 Ukrainian tank crew members and technicians on the Leopard 2. On 22 February, Robles also confirmed that Spain was in the process of preparing six Leopard 2A4 tanks for delivery to Ukraine by late March or early April. On 5 February 2023, it was reported that at least 11 of the 53 tanks stored at Zaragoza had been drawn out of storage to be refurbished and upgraded to have "the same lethality" as modern versions of the Leopard 2 before being sent to Ukraine. Five were sent to the Santa Bárbara Sistemas plant in Alcalá de Guadaira and six had already been moved to Seville for diagnostics and repairs. The Ministry of Defence had not published the contracts for the retrofits out of secrecy. It was unclear however if ammunition would be supplied with the tanks as Spain only has 9 rounds for each of its Leopard 2E tanks. On 23 February Spanish Prime Minister Pedro Sánchez confirmed during a visit to Kyiv that Spain was sending at least 10 Leopard 2 tanks to Ukraine.

Sweden

Sweden began considering Ukrainian requests for Leopard 2 tanks in January 2023 and did not rule out contributing its Strv 122 at a later stage. On 24 February, the Swedish minister of defence Pål Jonson announced that Sweden would be providing 10 Leopard 2A5 tanks to Ukraine.

source: wikipedia
